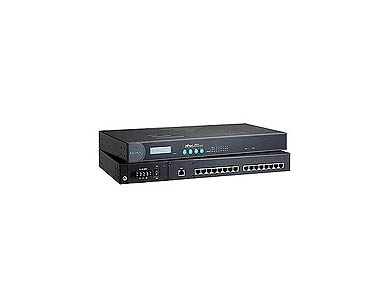

NPort 5650-8-M-SC - 8 port device server, 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 100M Multi mode Fiber, SC connector, 15K by MOXA
|
|
|
- Standard 19-inch rackmount size
- Easy IP address configuration with LCD panel (excluding wide-temperature models)
- Configure by Telnet, web browser, or Windows utility
- Socket modes: TCP server, TCP client, UDP
- SNMP MIB-II for network management
- Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
- Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
|
|
|
The NPort 5650-8-M-SC Rackmount Series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.
• Ethernet Interface |
Number of Ports |
1 |
Speed |
10/100 Mbps, auto MDI/MDIX |
Connector |
8-pin RJ45 |
Magnetic Isolation Protection |
1.5 kV built-in |
• Optical Fiber Interface (for -M-SC and -S-SC) |
|
• Serial Interface |
Number of Ports |
8 or 16 |
Serial Standards |
RS-232/422/485 |
Connector |
RJ45 (8 pins) |
RS-485 Data Direction Control |
ADDC® (automatic data direction control) |
Pull High/Low Resistor for RS-485 |
1 kΩ, 150 kΩ (NPort 5650-8/16) |
• Serial Communication Parameters |
Data Bits |
5, 6, 7, 8 |
Stop Bits |
1, 1.5, 2 |
Parity |
None, Even, Odd, Space, Mark |
Flow Control |
DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF |
Baudrate |
50 bps to 921.6 kbps |
• Serial Signals |
RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
RS-485-4w |
Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w |
Data+, Data-, GND |
• Software |
Network Protocols |
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP, PPP, SLIP, RTelnet, RFC2217 |
Configuration Options |
Web Console, Telnet Console, Windows Utility |
Windows Real COM Drivers |
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
Fixed TTY Drivers |
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
Linux Real TTY Drivers |
Linux 2.4.x, 2.6.x, 3.x |
• Mini Screen with Push Buttons (for standard temp. models) |
LCD Panel |
Liquid Crystal Display on the case |
Push Buttons |
Four push buttons for convenient on-site configuration |
• Physical Characteristics |
Housing |
Metal |
Weight |
NPort 5650-8-S-SC, 5650-8-M-SC: 3380 g
NPort 5650-8: 3360 g
NPort 5650-16: 3460 g
NPort 5650-16-S-SC, 5650-16-M-SC: 3440 g
NPort 5650-8-HV-T: 3720 g
NPort 5650-16-HV-T: 3820 g |
Dimensions |
Without ears: 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
With ears: 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in) |
• Environmental Limits |
Operating Temperature |
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
Storage Temperature |
Standard Models: -40 to 75°C (-40 to 167°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
Altitude |
Up to 2000 m |
Note |
Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
• Power Requirements |
Input Voltage |
NPort 5650: 100 to 240 VAC, 47 to 63 hz
NPort 5650-HV: 110 VDC (88 to 300 VDC) |
Power Consumption |
NPort 5650-8/16: 158 mA @ 100 VAC, 102 mA @ 240 VAC
NPort 5650-8/16-S-SC: 164 mA @ 100 VAC, 110 mA @ 240 VAC
NPort 5650-8/16-M-SC: 174 mA @ 100 VAC, 113 mA @ 240 VAC
NPort 5650-8/16-HV: 152 mA @ 88 VDC, 86 mA @ 300 VDC |
• Standards and Certifications |
EMI |
EN55022 Class A, FCC part 15 Subpart B Class A |
EMS |
EN 61000-4-2 ESD: contact 4 kV; air 8 kV
EN 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz)
EN 61000-4-4 EFT: Power 4 kV; Signal 2 kV
EN 61000-4-5 Surge: AC 1 kV (AC models); DC 2 kV (DC/HV models); Signal 1 kV
EN 61000-4-6 CS: 3 V
EN 61000-4-8
EN 61000-4-11: A |
Safety |
UL 60950-1, EN 60950-1 |
EMC |
55022/24 |
Medical |
EN 60601-1-2 Class B, EN 55011 |
• Reliability |
Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
MTBF (mean time between failures) |
NPort 5650-8: 117,584 hrs
NPort 5650-16: 104,767 hrs
NPort 5650-8-S-SC: 116,914 hrs
NPort 5650-16-S-SC: 87,528 hrs
NPort 5650-8-M-SC: 116,914 hrs
NPort 5650-16-M-SC: 87,528 hrs
NPort 5650-8-HV: 725,390 hrs
NPort 5650-16-HV: 531,264 hrs |
|
|
|
|
