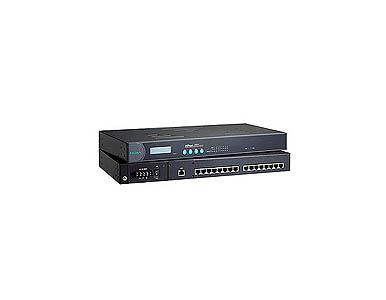

NPort 5610-8-48V - 8 port device server, 10/100M Ethernet, RS-232, RJ-45 8pin, 15KV ESD, +-48 VDC by MOXA

NPort 5610-8-48V - 8 port device server, 10/100M Ethernet, RS-232, RJ-45 8pin, 15KV ESD, +-48 VDC
by MOXA

Write a review Write a review
  • Standard 19-inch rackmount size
  •  Easy IP address configuration with LCD panel (excluding wide-temperature models)
  •  Configure by Telnet, web browser, or Windows utility
  •  Socket modes: TCP server, TCP client, UDP
  •  SNMP MIB-II for network management
  •  Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
  •  Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)



Mfg SKU # : NPort 5610-8-48V
Our Price : $911.50
Stock :Call for Availability
Quantity :
The NPort 5610-8-48V Rackmount Series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.
 Ethernet Interface
Number of Ports 1
Speed 10/100 Mbps, auto MDI/MDIX
Connector 8-pin RJ45
Magnetic Isolation Protection 1.5 kV built-in
 Optical Fiber Interface (for -M-SC and -S-SC)
fibercable
 Serial Interface
Number of Ports 8 or 16
Serial Standards NPort 5610: RS-232
NPort 5630: RS-422/485
Connector RJ45 (8 pins)
RS-485 Data Direction Control ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485 1 kΩ, 150 kΩ (NPort 5650-8/16)
 Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF
Baudrate 50 bps to 921.6 kbps
 Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
 Software
Network Protocols ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, ARP, PPP, SLIP, RTelnet, RFC2217
Configuration Options Web Console, Telnet Console, Windows Utility
Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x
 Mini Screen with Push Buttons (for standard temp. models)
LCD Panel Liquid Crystal Display on the case
Push Buttons Four push buttons for convenient on-site configuration
 Physical Characteristics
Housing Metal
Weight NPort 5610-8: 3340 g
NPort 5610-8-48V: 3160 g
NPort 5630-8, 5650-8-S-SC, 5650-8-M-SC: 3380 g
NPort 5610-16: 3420 g
NPort 5610-16-48V: 3260 g
NPort 5630-16: 3400 g
Dimensions Without ears: 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
With ears: 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)
 Environmental Limits
Operating Temperature Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature Standard Models: -40 to 75°C (-40 to 167°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
High Voltage Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Altitude Up to 2000 m
Note Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
 Power Requirements
Input Voltage NPort 5610/5630/5650: 100 to 240 VAC, 47 to 63 hz
NPort 5610-48V: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Power Consumption NPort 5610-8/16: 141 mA @ 100 VAC, 93 mA @ 240 VAC
NPort 5630-8/16: 152 mA @ 100 VAC, 98 mA @ 240 VAC
NPort 5610-8/16-48V: 135 mA @ 48 VDC
 Standards and Certifications
EMI EN55022 Class A, FCC part 15 Subpart B Class A
EMS EN 61000-4-2 ESD: contact 4 kV; air 8 kV
EN 61000-4-3 RS: 3 V/m (80 MHz to 1 GHz)
EN 61000-4-4 EFT: Power 4 kV; Signal 2 kV
EN 61000-4-5 Surge: AC 1 kV (AC models); DC 2 kV (DC/HV models); Signal 1 kV
EN 61000-4-6 CS: 3 V
EN 61000-4-8
EN 61000-4-11: A
Safety UL 60950-1, EN 60950-1
EMC 55022/24
Medical EN 60601-1-2 Class B, EN 55011
 Reliability
Automatic Reboot Trigger Built-in WDT (watchdog timer)
MTBF (mean time between failures) NPort 5610-8: 97,294 hrs
NPort 5610-16: 94,928 hrs
NPort 5610-8-48V: 96,758
NPort 5610-16-48V: 94,417 hrs
NPort 5630-8: 118,405 hrs
NPort 5630-16: 91,483 hrs
