UPAL24/48-14-900 - UPSPro 750W 17,280VA, 24/48VDC 30A Unregulated Output,120/240VAC Input, Aluminum Encl, 1440Ah Battery. by Tycon Systems

UPAL24/48-14-900 - UPSPro 750W 17,280VA, 24/48VDC 30A Unregulated Output,120/240VAC Input, Aluminum Encl, 1440Ah Battery.
by Tycon Systems

Write a review Write a review
  • Configurable as 24V or 48VDC System
  • Weatherproof, UV resistant, outdoor enclosure
  • Powered from AC mains power and/or Solar
  • Interior space for customer electronics
  • Ground Mounting
  • Isolates Connected Equipment from Power Line Surges
  • High Quality Sealed Pure Lead Carbon AGM Batteries
  • Advanced battery charge controller protects against overcharge and over discharge

Applications
• Wireless Base Stations and Clients
• Mission critical power
• Remote Sensors
• Wireless Bridge and Repeaters
• Surveillance Cameras
• Backup Power Systems

Mfg SKU # : UPAL24/48-14-900
List Price : $8,999.95
Our Price : $8,820.00
Stock : Call for Availability
Quantity :
UPAL24/48-14-900, the UPSPro UPAL24/48-xxx-900 outdoor backup power systems are designed for applications that require a flexible backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready (requires blocking diode with most panels) so a solar panel can be added as an alternate power source or to extend backup time.

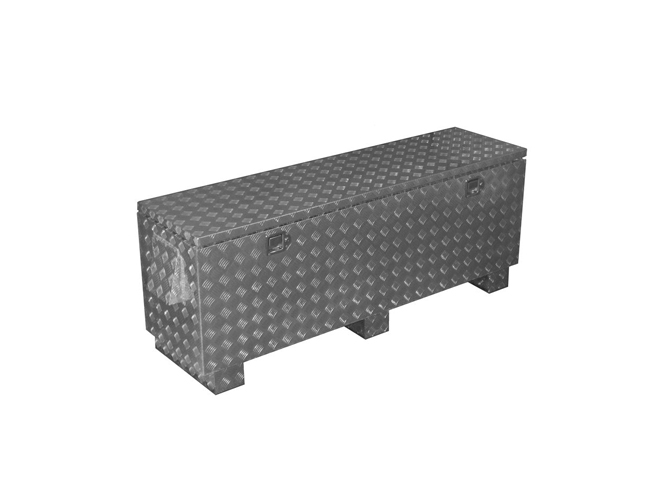

Features include 24V/48VDC configurable output, an advanced 60A MPPT battery charge controller to protect against over-charging or overdischarging of the valve regulated sealed lead acid pure lead carbon AGM batteries. The ground mount aluminum enclosure has multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They have thermostatically controlled power ventilation which turns on automatically when inside temperature exceeds 45C.

There is generous space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. There are mounting struts incorporated inside the enclosure to be able to mount DIN Rails or a flat metal or plywood plate. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.
