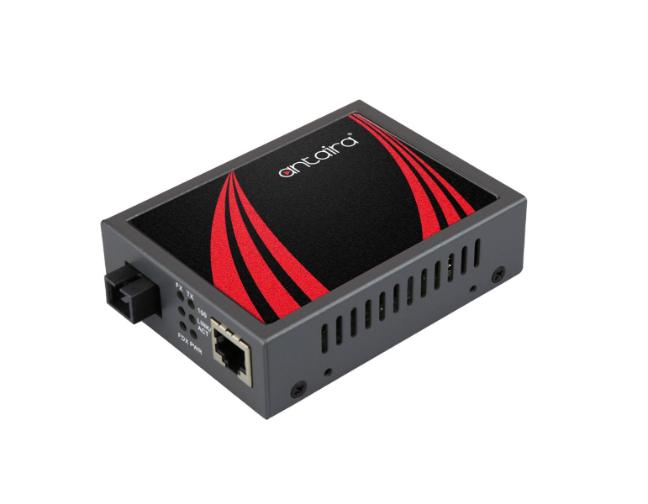

Antaira Technologies EMC-0201G-SC-WB-S1 is a compact single-mode gigabit fiber to 10/100/1000 Ethernet WDM media converter. The EMC-0201G-SC-WB-S1 is housed in a industrial metal case and conforms to the FCC emission standards. The EMC-0201G-SC-WB-S1 features a standard SC single strand fiber connector as well as the copper STP-RJ45 Ethernet connector. The EMC-0201G-SC-WB-S1 is fully compliant with the IEEE 802.3z 1000Base-SX/LX and IEEE 802.3ab, 1000Baes-T. The EMC-0201G-SC-WB-S1 features LEDs that provide indicators for Power, TP Link/ACT and Fiber Link/ACT. The EMC-0201G-SC-WB-S1 is a industrial WDM media converter that operates on single mode, single strand fiber TX:1550nm RX:1310nm capable of transmission up to 10 kilometers. WDM media converters are a great solution to double the bandwidth of a existing fiber network.
EMC-0201G-SC-WB-S1.html
| Approvals | FCC Class A, CE | | Connector | SC (Single-Mode WDM) | | Dimensions | 71 x 94 x 26 mm (2.80 x 3.70 x 1.02 inches) | | Ethernet | 1 x RJ45 Interface | | Fiber | 1 x SC BiDi Interface | | Humidity | 5% ~ 90% non-condensing | | IEEE | IEEE 802.z 1000BaseX
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3x Flow Control | | LED | Power, FDX, ACT, TP Link, Fiber Link | | Link Budget | 12.0 dB | | Max Tx Power | -2.0 dBm | | Min Tx Power | -9.0 dBm | | Operating Temperature | 0 ~ 50 C | | Power | DC 5V, 1.5A (wall adapter 100V-240V AC) | | Power Consumption | 6 W | | Sensitivity | -21.0 dBm | | Storage Temperature | -20 ~ 60 C | | Typical Distance | 10 Km | | Warranty | 5 Years | | Wavelength | TX: 1550 nm
RX: 1310 nm | | Weight | 0.6 Kg |
|
