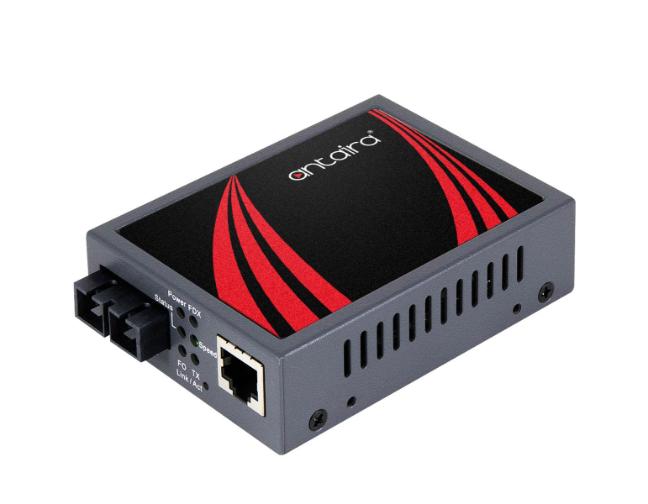

EMC-0201G-SC-M - 10/100/1000TX To 1000SX Media Converter, Multi-Mode 550M, SC Connectors
by ANTAIRA
|
|
|
|
EMC-0201G-SC-M_SUMMARY.html
- Complies with IEEE 802.3/u/ab 10/100/1000BaseT
- Complies with IEEE 802.3z 1000BaseX
- Supports Jumbo Frame (9K bytes)
- Store-and-Forward Switching Mechanism
- Auto-Crossover for MDI/MDIX in TP Port
- Auto-Negotiation in TP Port
- Supports Flow Control
- Supports Link Alarm
- Supports Auto & Force Mode Configuration
|
|
|
EMC-0201G-SC-M_DESCRIPTION.html
Antaira Technologies EMC-0201G-SC-M is a compact, multi-mode Gigabit Ethernet converter. The EMC-0201G-SC-M will take 10/100/1000BaseT copper Ethernet and convert it to 1000BaseX fiber. The EMC-0201G-SC-M features a standard SC fiber connector as well as the STP-RJ45 Ethernet connector. The copper media converter is fully compliant with IEEE 802.3z and 802.3u Fast Ethernet standers. The industrial media converter features LED diagnostics for power, activity, link and Full/Half Duplex operations. The EMC-0201G-SC-M gigabit media converter will use multi mode 850NM fiber with a SC connector and is capable of communication of up to 550 meters.
EMC-0201G-SC-M.html
| Approvals | FCC Class A, CE | | Connector | SC (Multi-Mode) | | Dimensions | 71 x 94 x 26 mm (2.80 x 3.70 x 1.02 inches) | | Ethernet | 1 x RJ45 Interface | | Fiber | 1 x SC Duplex Interface | | Humidity | 5% ~ 90% non-condensing | | IEEE | IEEE 802.z 1000BaseX
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3x Flow Control | | LED | Power, FDX, ACT, TP Link, Fiber Link | | Link Budget | 8.5 dB | | Max Tx Power | -4.0 dBm | | Min Tx Power | -9.5 dBm | | Operating Temperature | 0 ~ 50 C | | Power | DC 5V, 1.5A (wall adapter 100V-240V AC) | | Power Consumption | 6 W | | Sensitivity | -18.0 dBm | | Storage Temperature | -20 ~ 60 C | | Typical Distance | 550 m | | Warranty | 5 Years | | Wavelength | 850 nm | | Weight | 0.6 Kg |
|
|
