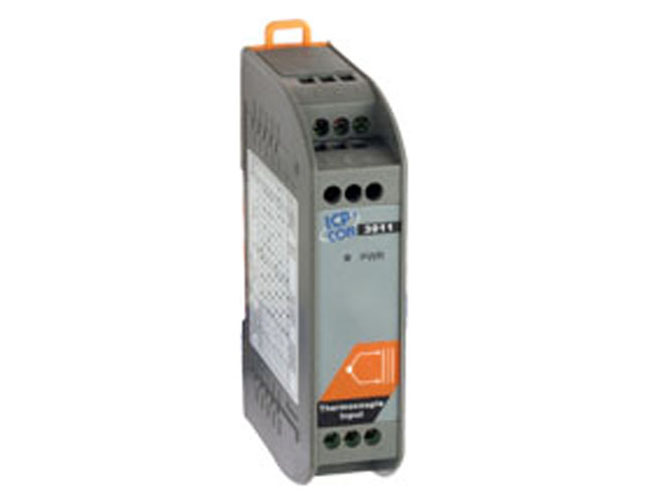

The SG-3011 is a thermocouple input signal conditioner. SG-3011 uses microprocessor-controlled high-resolution 24-bit dual-slope, integrating A/D converter to acquire thermocouple signal and cold junction compensation input. Temperature measurement is handled by thermocouple linearization and cold junction compensation function. The supported thermocouple types are J, K, T, E, R, S, B, N, C, L, M, L2 (DIN 43710).
| Analog Input |
| Input Channels |
1 |
| Input Type |
Thermocouple( Type J, K, T, E, R, S, B, N, C, L, M, L2) |
| Resolution |
12-bit |
| Stability (temperature drift) |
±2°C |
| Accuracy |
±0.2% of full range |
| Band Width |
5.24Hz |
| Overload protection |
240 Vrms |
| Normal Mode Rejection |
100dB |
| Input Impedance |
1.8M Ohms |
| Offset mode |
CJC offset adjustable |
| OPEN Thermocouple detection |
Yes |
| Isolation (three way) |
1000 Vdc |
| Analog Output |
| Channels |
1 |
| Voltage Output |
0~10V(Drive 10mA max.) |
| Current Output |
0~20mA |
| Output impedance |
<50Ω |
| LED Display |
| 1 LED as Power/ Communication indicator |
| Power |
| Input |
+10 to +30 Vdc |
| Power Consumption |
1.44W |
| Environment |
| Operating temperature |
-25°C to 75 °C |
| Storage temperature |
-30°C to 75 °C |
| Humidity |
5 to 95%, non-condensing |
Themocouple Type
| Type |
Temperature Range (°C) |
| J |
-40 ~ +760 |
| K |
0 ~ +1000 |
| T |
-100 ~ +400 |
| E |
0 ~ +1000 |
| R |
+500 ~ +1750 |
| S |
+500 ~ +1750 |
| B |
+500 ~ +1800 |
| N |
-100 ~ +1300 |
| C |
0 ~ +2000 |
| L |
-200 ~ +800 |
| M |
-200 ~ +100 |
| L2(DIN 43710) |
-200 ~ +900 |
|
