DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

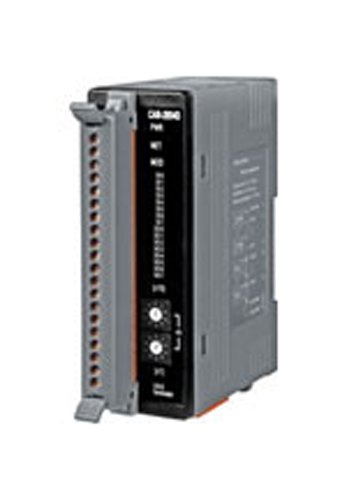

The CAN-2054D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital I/O status and set the configuration via DeviceNet EDS file. This module has 8-channel isolated sink/source input and 8-channel isolated sink output. It can be applied to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements.
| DeviceNet Interface |
| DeviceNet Specification |
Volume I, Release 2.0 & Volume II, Release 2.0, Errata5 |
| DeviceNet subscribe |
Group 2 Only Server |
| Connection supported |
1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O |
Baud Rate
Setting by Rotary Switch |
125 kbps, 250 kbps, 500 kbps |
Node ID
Setting by Rotary Switch |
0 ~ 63 |
| Heartbeat message |
Yes |
| Shutdown message |
Yes |
| Terminator Resistor |
Switch for 120 Ω terminator resistor |
| Connector |
5-pin screwed terminal block
(CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+) |
| EDS file |
Yes |
| LED |
PWR/NET/MOD |
| Digital Input |
| Channels |
8 (Sink/Source) |
| On Voltage Level |
+3.5 ~ +30 VDC |
| Off Voltage Level |
+1 VDC Max. |
| Input Impedance |
3 kΩ, 0.3 W |
| Intra-module Isolation |
3750 Vrms |
| ESD Protection |
4 kV Contact for each channel |
| Digital Output |
| Channels |
8 (Sink) |
| Load Voltage |
+5 ~ +30 VDC |
| Output Max Load Current |
700 mA per channel |
| Output Type |
Open Collector |
| Intra-module Isolation |
3750 Vrms |
| ESD Protection |
4 kV Contact for each channel |
| LED |
| DeviceNet Status |
3 LEDs for PWR/NET/MOD |
| Terminal Resister |
1 LED to terminal resister indicators |
| DI LED |
8 LEDs to digital input indicators |
| DO LED |
8 LEDs to digital output indicators |
| Power |
| Power Supply |
Unregulated +10 ~ +30 VDC |
| Power Consumption |
1.5 W |
| Mechanism |
| Installation |
DIN-Rail |
| Dimensions |
32.3 mm x 99 mm x 77.5 mm ( W x L x H ) |
| Environment |
| Operating Temp. |
-25 ~ 75 ℃ |
| Storage Temp. |
-30 ~ 80 ℃ |
| Humidity |
10 ~ 90% RH, non-condensing |
|
