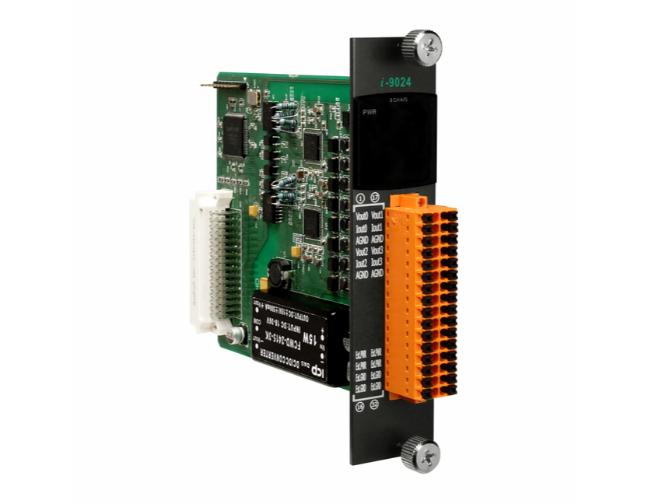

The I-9024U is a source type analog output module, with 4 single-ended analog output channels. Each channel can be programmed to an individual output range of 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, +4 ~ +20 mA or 0 ~ +20 mA. Open wire detection is provided for +4 ~ +20 mA output. Options for configuring power-on and safe values are included, together with qualification for 4 kV ESD protection as well as 3000 VDC intramodule isolation.
I-9024U.html
|
System LED Indict
|
1 LED as Power Indicator
|
|
I/O LED Indicator
|
-
|
|
Intra-module Isolation, Field-to-Logic
|
3000 VDC
|
|
ESD (IEC 61000-4-2)
|
±4 kV Contact for each Terminal
±8 kV Air for Random Point
|
|
Power Consumption
|
2 W Max.
|
|
Dimensions (L x W x H)
|
144 mm x 30.3 mm x 134 mm
|
|
Operating Temperature
|
-25C ~ +75C
|
|
Storage Temperature
|
-40C ~ +85C
|
|
Humidity
|
10 ~ 90% RH, non-condensing
|
I/O Specifications
|
Channels
|
4
|
|
Current Output Wiring
|
Source
|
|
Range
|
0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC, 0 ~ +20 mA, +4 ~ +20 mA
|
|
Resolution
|
16-bit
|
|
Accuracy
|
±0.02% of FSR
|
|
Zero Drift
|
±0.2 μV/C
|
|
Span Drift
|
±25 ppm/C
|
|
Short Circuit Protection
|
Yes
|
|
Power-on Value
|
Yes
|
|
Safe Value
|
Yes
|
|
External Power Requirements
|
|
Reverse Polarity Protection
|
Yes
|
|
Powered from Terminal Block
|
Yes, 15 ~ 30 VDC
|
|
Isolation
|
3000 VDC
|
|
