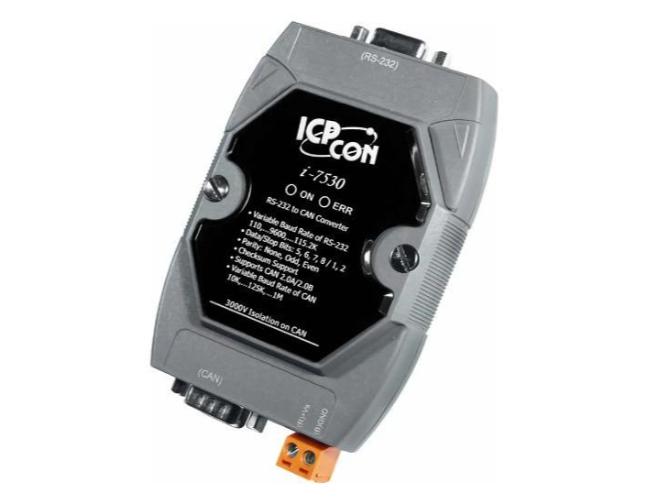

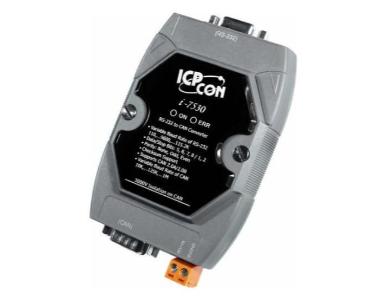

In pair connection mode, I-7530 can be used to connect PC with other RS-232 devices at the same time. I-7530 can also enable programmable RS-232 devices such as PC's, I-8411/I-8431/I-8811/I-8831 embedded controllers to be the master of a CAN network.
I-7530.html
| CAN Interface
|
| Transceiver
|
NXP 82C250
|
AMIS 41682
|
| Channel number
|
1
|
| Connector
|
9-pin male D-Sub (CAN_L, CAN_H, N/A for others)
|
| Baud Rate (bps)
|
10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 Mbps
|
10 k, 20 k, 50 k, 125 kbps
|
| Isolation
|
3000 VDCfor DC-to-DC,
2500 Vrms for photo-couple
|
NONE
|
| Terminator Resistor
|
Selectable 120O terminator resistor by jumper
|
1 kO for CAN_H and CAN_L
|
| Specification
|
ISO-11898-2, CAN 2.0A and CAN 2.0B
|
ISO-11898-3 (low speed fault tolerance), CAN 2.0A and CAN 2.0B
|
| Receive Buffer
|
1000 data frames
|
| RS-232 Interface
|
| Connector
|
9-pin female D-Sub (TxD, RxD, GND, N/A for others )
|
| Baud Rate (bps)
|
110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200,
38400, 57600, 115200bps
|
| Data bit
|
5, 6, 7, 8
|
| Stop bit
|
1, 2
|
| Parity bit
|
None, Even, Odd
|
| Receive Buffer
|
900 data frames
|
| LED
|
| Round LED
|
ON LED: Power and Data Flow; ERR LED: Error Status
|
| Power
|
| Protection
|
Power reverse polarity protection, Over-voltage
brown-out protection
|
| Power Consumption
|
1 W
|
| Mechanism
|
| Installation
|
DIN-Rail
|
| Dimensions
|
72mm x 118mm x 33mm (W x L x H)
|
| Environment
|
| Operating Temp.
|
-25 ~ 75 ?
|
| Storage Temp.
|
-30 ~ 80 ?
|
| Humidity
|
10 ~ 90% RH, non-condensing
|
|
