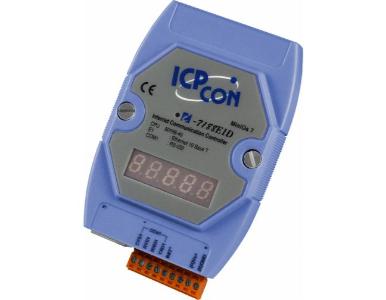

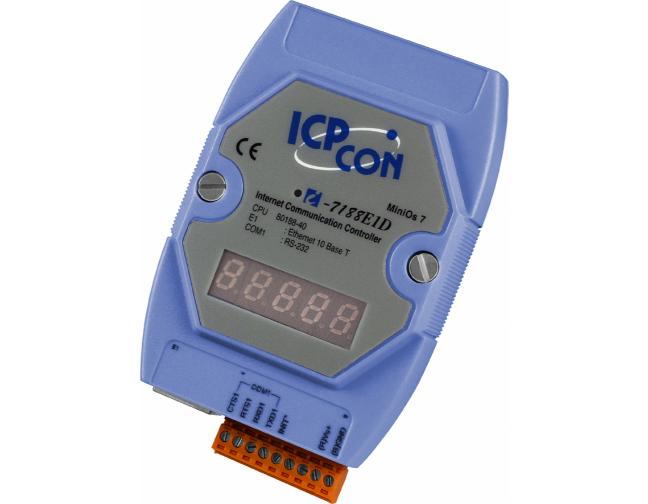

I-7188E1D - 1 Serial Port to Ethernet Converter / Intelligent Controller with 7 segment display, 40 Mhz CPU. by ICP DAS
|
|
|
I-7188E1D_SUMMARY.html
- Ideal for embedded Ethernet control or serial to Ethernet conversion
- Compact form factor
- AMD 80188-40 embedded CPU
- ISaGRAF IEC-1131 development runtime equipped** (I-7188EG)
- ModBus TCP/IP & RTU compatible** (requires "-MTCP" firmware)
- Supports a variety of TCP/IP features:
- TCP, UDP, IP, CMP, ARP, and RARP
- 10BASE-T NE2000 compatible Ethernet Controller
- Reloadable Operating Software
- Remote Configuration
- 64-bit hardware unique serial number inside
- COM driver support interrupt & 1K QUEUE input buffer
- COM port: COM1, COM2,
- Built-in RTC, NVRAM, EEPROM
- User defined 14 I/O lines
- Built-in I/O expansion bus interface
- Internal expansion bus allows for multiple capability configurations
- Built-in self-tuner ASIC controller on RS-485 port
- 7-segment LED display for:
- I-7188E1D, I-7188E2D, I-7188E3D, I-7188E4D, I-7188E5D and I-7188E8D
- Built-in MiniOS7
- Program download port: COM1 or Ethernet Port
|
|
|
I-7188E1D_DESCRIPTION.html
The I-7188E1D is similar to the I-7188EX. Since there are too many configurations for the I-7188E series product, OEM or ODM version is welcome. Can be used as Addressable Ethernet to RS-232/485/422 Converter.
I-7188E1D.html
CPU |
CPU |
80188, 40MHz or compatible |
SRAM |
384K bytes
|
Flash Memory |
512K bytes |
EEPROM |
2K Bytes |
Built-in Watchdog Timer |
Yes |
Communication Interface |
COM1 |
RS-232 (TXD, RXD, RTS, CTS, GND) |
Ethernet Port |
10BASE-T NE2000 compatible Ethernet Controller |
COM Port Formats |
Data bit |
7, 8 |
Parity |
Even, Odd, None |
Stop bit |
1 |
Baud Rate |
115200 bps Max. |
LED Display |
5-Digit 7 Segment LED Display |
Yes (for I-7188E1D only) |
System LED Indicator |
Yes |
Dimensions |
I-7188E1(D) |
123mm x 72mm x 33mm |
Operating Environment |
Operating Temperature |
-25C to +75C |
Storage Temperature |
-40C to +80C |
Power |
Protection |
Power reverse polarity protection |
Required Supply Voltage |
+10 to +30V/DC (non-regulated) |
Power consumption |
2W for I-7188E1 3W for I-7188E1D |
|
|
|
