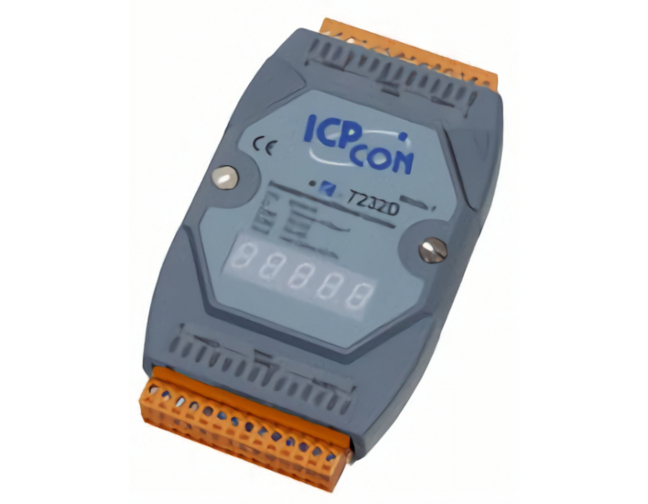

I-7232D - CANOpen to Modbus RTU Gateway. Supports operating temperatures between -25 to 75C.
by ICP DAS
|
|
|
|
I-7232D_SUMMARY.html
- NMT: Slave
- Error Control: Node Guarding protocol
- Node ID: Setting by CAN_MRU Utility Software
- PDO Modes: Event-triggered, remotely requested, cyclic and acyclic SYNC
- PDO Mapping: variable
- No of SDOs: 1 server, 0 client
- Emergency Message: Yes
- CANopen Version: DS-301 v4.01
- Device Profile: DSP-401 v2.0
- CAN Baud Rate setting by utility:
- 10K, 20K, 50K, 125K, 250K, 500K, 800K, 1M bpse
- Modbus Baud Rate setting by utility:
- 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200 bps
- RUN, ERR, and OVERRUN LED indicators
- Support max 10 Modbus RTU I/O series modules
- Provide friendly Utility for parameters configuration.
-
7-segmemt LED to show Node ID, CAN baud rate and RS-485 baud rate
|
|
|
I-7232D_DESCRIPTION.html
The I-7232D CANOpen to Modbus RTU Gateway. Supports operating temperatures between -25 to 75°C.
I-7232D.html
| Model | I-7232D | | CPU | 80188, 40MHz | | Flash | 512K bytes | | SRAM | 512K bytes | | EERROM | 2K bytes (Can upto 128K bytes or change to 2K/8K FRAM) | | NVRAM | 32 bytes | | Real Time Clock | 16 bit | | Watch Dog Timer | CPU Built-in | | COM1 | RS232: TXD,RXD,RTS,CTS,GND | | COM2 | RS485: D2+, D2- | | Communication Speed | 117200 max | | CAN Controller | Phillip SJA1000T CAN Controller | | CAN Transceiver | Phillip 82C250/251CAN Transceiver | | LED Directors | ERR, RUN, OVERRUN | | Display | 7-segment LED: 5digit | | Isolated | 2500Vrms on CAN side | | Power Supply | 20W unregulated +10VDC to +30Vdc | | Operating Temp | -25C to 75C | | Storage Temp | -30C to 85C | | Humidity | 5 ~ 95% | | Dimensions | 133 x 72 x 33 mm |
|
