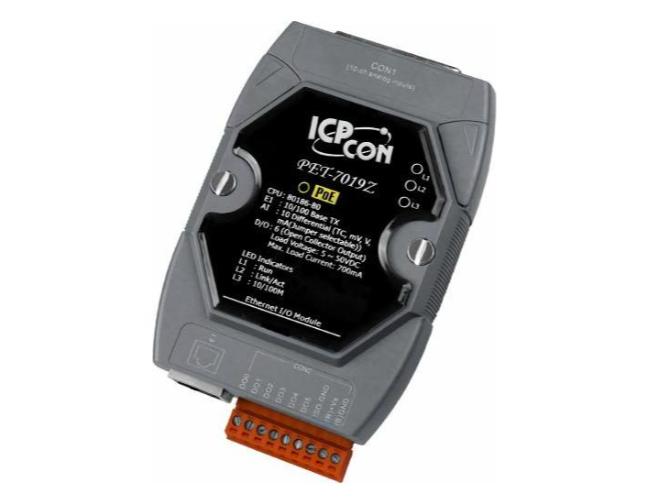

PET-7019Z/S - 10-channel Thermocouple Input Module, Current Input and Voltage Input with High Voltage Protection and 6-channel by ICP DAS
|
|
|
PET-7019Z_S_SUMMARY.html
PET-7019Z/S - 10-channel Thermocouple Input Module, Current Input and Voltage Input with High Voltage Protection and 6-channel Isolated Digital Output PoE Data Acquisition Module with Surge Protection. Communicable over Ethernet and Modbus TCP Protocol. Includes a DB-1820 Daughter Board.
|
|
|
PET-7019Z_S_DESCRIPTION.html
PET-7019Z/S - 10-channel Thermocouple Input Module, Current Input and Voltage Input with High Voltage Protection and 6-channel Isolated Digital Output PoE Data Acquisition Module with Surge Protection. Communicable over Ethernet and Modbus TCP Protocol. Includes a DB-1820 Daughter Board.
PET-7019Z_S.html
Software |
Built-In Web Server |
Yes |
Web HMI |
Yes |
I/O Pair Connection |
Yes |
Communication |
Ethernet Port |
10/100 Base-TX with Auto MDI/MDI-X |
PoE |
Yes |
Protocol |
Modbus/TCP, Modbus/UDP |
Security |
ID, Password and IP Filter |
Dual Watchdog |
Yes, Module (0.8 second), Communication (Programmable) |
LED Indicators |
L1 (System Running) |
Yes |
L2 (Ethernet Link/Act) |
Yes |
L3 (Ethernet 10/100 M Speed) |
- |
PoE Power |
Yes |
2 Way Isolation |
Ethernet |
- |
I/O |
2500 VDC |
EMS Protection |
ESD (IEC 61000-4-2) |
4 kV Contact for Each Terminal and 8 kV Air for Random Point |
EFT (IEC 61000-4-4) |
+/-4 kV for Power |
Power Requirements |
Reverse Polarity Protection |
Yes |
Powered from Terminal Block |
Yes, 12 ~ 48 VDC |
Powered from PoE |
Yes, IEEE 802.3af, Class1 |
Consumption |
2.9 W |
Mechanical |
Dimensions (W x L x H) |
72 mm x 123 mm x 35 mm |
Installation |
DIN-Rail or Wall mounting |
Environmental |
Operating Temperature |
-25 C ~ +75 C |
Storage Temperature |
-30 C ~ +80 C |
Humidity |
10 ~ 90% RH, non-condensing |
Thermocouple Input |
Channels |
10 (Differential) |
Sensor Type |
+/-15 mV, +/-50 mV, +/-100 mV, +/-150 mV, +/-500 mV, +/-1 V, +/-2.5 V,
+/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) Thermocouple (J, K, T,
E, R, S, B, N, C, L, M, and LDIN43710) |
Individual Channel Configuration |
Yes |
Resolution |
16-bit |
Sampling Rate |
10 Samples/Second (Total) |
Accuracy |
+/-0.1% of FSR or better |
Zero Drift |
+/-0.5 µV/C |
Span Drift |
+/-25 ppm/C |
Over Voltage Protection |
240 Vrms |
Input Impedance |
>300 kO |
Common Mode Rejection |
86 dB Min. |
Normal Mode Rejection |
100 dB |
Temperature Output Consistency |
Yes |
Stable Temperature Output in the Field |
Yes |
Open Wire Detection |
Yes |
Virtual Channel to Channel Isolation |
+/-400 VDC |
Digital Output |
Channels |
6 |
Type |
Isolated Open Collector |
Sink/Source (NPN/PNP) |
Sink |
Max. Load Current |
700 mA/Channel |
Load Voltage |
5 VDC~ 50 VDC |
Overvoltage Protection |
60 VDC |
Overload Protection |
1.4 A |
Short-circuit Protection |
Yes |
Power-on Value |
Yes, Programmable |
Safe Value |
Yes, Programmable |
Thermocouple Type |
RangeC |
J |
-210 ~ +760 |
K |
-270 ~ +1372 |
T |
-270 ~ +400 |
E |
-270 ~ +1000 |
R |
0 ~ +1768 |
S |
0 ~ +1768 |
B |
0 ~ +1820 |
N |
-270 ~ 1300 |
C |
0 ~ 2320 |
L |
-200 ~ +800 |
M |
-200 ~ +100 |
L2(DIN43710) |
-200 ~ +900 |
|
