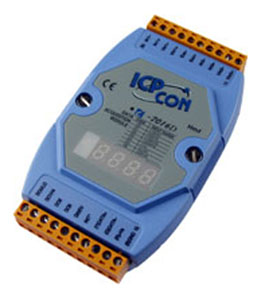

ICP DAS I-7016D - I-7016 with display
by ICP DAS
|
|
|
|
Strain Gauge Voltage Input, Current Input, & Analog Input Data Acquisition Module with 2 Analog Input, 1 Digital Input, 4 Digital Output Channels, communicable over RS-485, and FREE EZ Data Logger Software. Supports operating temperatures between -25°C ~ +75°C (-13°F ~ +167°F).
|
|
|
I-7016D is a cost-effective solution for a wide range of valuable industrial control signals and systems. The DCON utility can help users to configure and test I-7016D modules. Plenty of library functions and demo programs are provided to let users develop programs easily under Windows, Linux and DOS operating systems. Users may mount the modules on a DIN rail, panel or wall. Modules have a screw-terminal block to connect to the signals. I-7016D comes with FREE EZ Data Logger Software.
| Analog Input |
| Input Channels |
2 |
| Input Type |
+/-15mV, +/-50mV, +/-100mV,+/- 500mV , +/-1V,+/- 2.5V, +/- 20mA |
| Resolution |
16-bit |
| Sample Rate |
10 Samples/ Second (one-channel mode) |
| 2 Samples/ Second (two-channel mode) |
| Accuracy |
Yes |
| Bandwidth |
5.24Hz |
| Zero Drift |
+/-0.5uV/ °C |
| Span Drift |
25ppm/°C |
| Common Mode Rejection |
150dB |
| Normal Mode Rejection |
100dB |
| Overvoltage Protection |
10V (P-P) |
| Input Impedence |
20M Ohms |
| Intra-module Isolation, Field to Logic |
3000 VDC |
| Excitation Voltage Output |
| Output Channels |
1 |
| Output Range |
0 to +10V |
| Max. Output Load |
40mA |
| Accuracy |
+/-0.05% of FSR |
| Drift |
+/-50ppm/ °C |
| Output Impedence |
12 Ohms |
| Isolation |
3000 VDC |
| Digital Input |
| Channels |
1 |
| Logic Level 01 |
+ 1V max |
| Logic Level 02 |
+ 3.5V to 30V |
| Max. Input Frequency |
50Hz |
| Min. Pulse Width |
1 ms |
| Digital Output |
| Chanels |
4 |
| Output Type |
Sink, Open collector to 30V |
| Output Load |
30mA max per channel |
| Power Dissipation |
300 mW |
| Interface |
| Interface |
RS-485 |
| Format |
N, 8, 1 |
| Baud Rate |
1200 ~ 115200 bps |
| LED Display |
| 1 LED as Power/Communication Indicator |
| 4 1/2 Digits (for I-7016D)
|
| Power |
| Input Voltage Range |
+10 to +30Vdc |
| Power Consumption |
2.4W (I-7016) / 3.0W (I-7016D) |
| Environmental |
| Operating Temperature |
-25°C ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature |
-40°C ~ +80°C (-40°F ~ +176°F) |
| Humidity |
5 ~ 95% RH, non-condensing |
|
|
