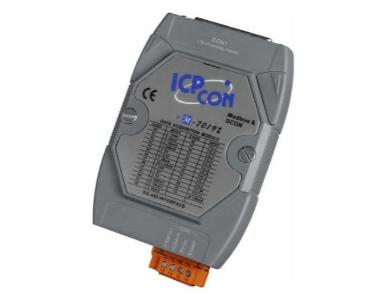

M-7019Z-G/S - 10 Channel Universal Voltage & Current Analog Input Module
by ICP DAS
|
|
|
|
M-7019Z-G_S_SUMMARY.html
- 10-channel Analog Input
- Individual Channel Configuration
- Open Thermocouple Detection
- Temperature Outputs Consistency
- Stable Temperature Output in the Field
- 240 Vrms Overvoltage Protection
- Jumper Selectable for Voltage or Current Input
- 4 kV ESD Protection
- Dual Watchdog
- 3000 VDC Intra-Module Isolation, Field to Logic
- Wide Range Operating Temperature: -25 C ~ 75 C
- RoHS Compliant
|
|
|
M-7019Z-G_S_DESCRIPTION.html
M-7019Z-G/S - 10 Channel Universal Voltage & Current Analog Input Module (Includes the M-7019Z module and a DB-1820 Daughter Board)
M-7019Z-G_S.html
| Analog Input |
| Input Channels |
10 Differential |
| Input Type |
+/- 15mV, +/- 50mV, +/- 100mV, +/- 150mV
+/- 500mV, +/- 1V, +/- 2.5V, +/- 5V,+/-
10V
-20 mA ~ +20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable)
Thermocouple (J, K, T, E. R.
S, B, N, C, L, M, LDIN43710) |
| Resolution |
16-bit |
| Sampling Rate |
10 Samples/Sec. (Total) |
| Accuracy |
0.1% of FSR |
| Zero Drift |
+/- 20 µV/C |
| Span Drift |
+/- 25 ppm/C |
| Common Mode Rejection |
86 dB |
| Normal Mode Rejection |
100 dB |
| Input Impedance |
Voltage Input: >400k Ohms, Current Input: 125 Ohms |
| Individual Channel Configurable |
Yes |
| Open Thermocouple Detection |
Yes, Setting Enable/Disable by software |
| Overvoltage Protection |
240 Vrms |
| ESD Protection |
+/- 4kV, Contact for each terminal. |
| Intra-module Isolation, Field to Logic |
3000 VDC |
| Watchdog |
| Dual Watchdog |
Yes, Module(1.6 sec) and Communication(Programable) |
| LED Display |
| 1 LED as Power/ Communication Indicator |
| Power |
| Input |
+10 ~ +30 VDC |
| Power Consumption |
Maximum : 1.8W |
| Environment |
| Operating Temperature |
-25 C ~ +75 C |
| Storage Temperature |
-40 C ~ +85 C |
| Humidity |
10 ~ 90% RH, Non-condensing |
| Dimensions |
| M-7019Z |
|
| DB-1820 |
22 mm x 78 mm x 65 mm (W x L X H) |
| DN-1822 |
27 mm x 96 mm x 103 mm (W x L x H) |
| Type Code
|
Type
|
Temperature Range C
|
| 0E
|
J
|
-210 ~ +760
|
| 0F
|
K
|
-270 ~ +1372
|
| 10
|
T
|
-270 ~ +400
|
| 11
|
E
|
-270 ~ +1000
|
| 12
|
R
|
0 ~ +1768
|
| 13
|
S
|
0 ~ +1768
|
| 14
|
B
|
0 ~ +1820
|
| 15
|
N
|
-270 ~ +1300
|
| 16
|
C
|
0 ~ +2320
|
| 17
|
L
|
-200 ~ +800
|
| 18
|
M
|
-200 ~ +100
|
| 19
|
L2 (DIN 43710)
|
-200 ~ +900
|
|
|
|
