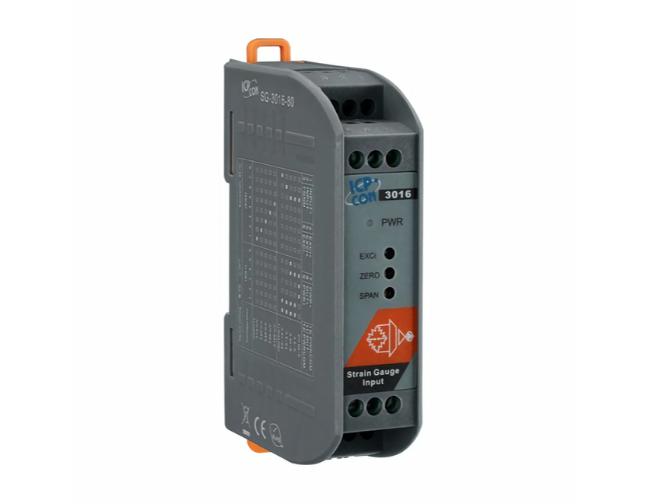

The SG-3016-80 is a voltage input to voltage or current output signal conditioning module. It has 1000 Vdc three-way isolation for input, output and power. It also can change the input/output range via internal configuration switches. The SG-3016-80 has an LED display to show whether the SG-3016-80 is functioning correctly and has three VRs (Zero, Span, Exci) to calibrate accuracy of the input/output range. The bandwidth of the SG-3016-80 is typically 80 Hz. It is easy to mount the SG-3016-80 on a standard DIN rail and operate in environments with wide temperature range.
SG-3016-80.html
| Isolation | | Three-way Isolation | 1000 VDC | | Analog Input | | Channels | 1 | | Type | ±10 mV, ±20 mV, ±30 mV, ±50 mV, ±100 mV | | Accuracy | ±0.1% of full range | | Bandwidth | <80 Hz | | Analog Output | | Channels | 1 | | Range | Voltage: 0 ~ 5 VDC, 0 ~ 10 VDC, ±5 VDC, ±10 VDC
Current: 0 ~ 20 mA | | Current Load Resistance | 0 ~ 500 ? (Source) | | Excitation Voltage Output | | Channels | 1 | | Range | 0 ~ +10 VDC | | Max. Load Current | +20 mA | | Power | | Reverse Polarity Protection | Yes | | Input Range | +10 ~ +30 VDC | | Consumption | 1.44 W (Voltage Output), 1.74 W (Current Output) | | Mechanical | | Dimensions (mm) | 25 mm x 114 mm x 70 mm (W x L x H) | | Environment | | Operating Temperature | -25 C ~ 75 C | | Storage Temperature | -30 C ~ 75 C | | Humidity | 5 ~ 95%, non-condensing |
|
