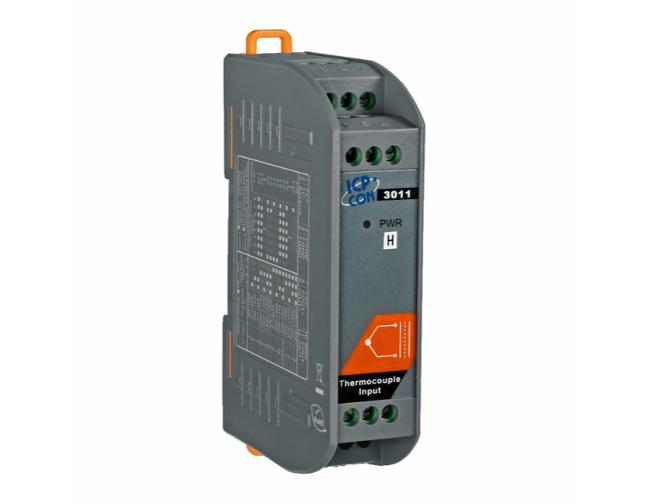

The SG-3011H module is a thermocouple input signal conditioner that uses a microprocessor-controlled high-resolution 24-bit integrated A/D converter to acquire the thermocouple signal and the cold junction compensation input. Temperature measurement is performed using the thermocouple linearization and cold junction compensation function. The range of thermocouple types supported by the SG-3011H module include J, K, T, E, R, S, B, N, C, L, M, L2 (DIN43710). The response time for the SG-3011H is switch selectable and can be set to either 0.5 ms or 100 ms. The power supply that drives the input and output circuitry in the module is internally isolated, enabling the SG-3011H to offer true channel-to channel isolation. The SG-3011H module is easily mounted on a standard DIN rail, and the module can operate in harsh environments with a wide temperature range.
SG-3011H.html
I/O Specifications
|
Channels
|
1
|
|
Type
|
J, K, T, E, R, S, B, N, C, L, M, L2
|
|
Resolution
|
24-bit
|
|
Accuracy
|
±0.1% of FSR
|
|
Response Time
|
0.5 ms or 100 ms (Switch Selectable)
|
|
Input Impedance
|
1.6 MO
|
|
Offset Mode
|
Adjustable CJC Offset
|
|
Open Thermocouple Detection
|
Yes
|
|
Channels
|
1
|
|
Type
|
0 to 10 V, 0 to 20 mA
|
|
Resolution
|
12-bit
|
|
Accuracy
|
±0.1% of FSR
|
|
Voltage Output Capability
|
20 mA
|
|
Current Load Resistance
|
< 50 O
|
|
1 LED as Power/Communication indicator
|
|
|
Input
|
+10 ~ +30 VDC
|
|
Power Consumption
|
1.44 W
|
|
Operating temperature
|
-25 C ~ 75 C
|
|
Storage temperature
|
30 C ~ 75 C
|
|
Humidity
|
5 ~ 95%, non-condensing
|
System Specifications
|
System LED Indicatore
|
Yes, 1 as Power/Communication Indicator
|
|
Three-way Isolation
|
1000 VDC
|
|
ESD (IEC 61000-4-2)
|
±4 kV Contact for each Terminal
|
|
EFT (IEC 61000-4-4)
|
±4 kV for Power Line
|
|
Surge (IEC 61000-4-5)
|
-
|
|
Reverse Polarity Protection
|
Yes
|
|
Input Range
|
+10 to +30 VDC
|
|
Consumption
|
1.44 W
|
|
Dimensions (L x W x H)
|
74.5 mm x 24.5 mm x 113.0 mm
|
|
Operating Temperature
|
-25 to +75C
|
|
Storage Temperature
|
-40 to +85C
|
|
Humidity
|
10 to 95% RH, Non-condensing
|
|
