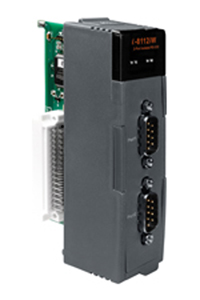

The I-8112iW provides 2-isolated RS-232 serial ports. It equips 128 bytes hardware FIFO for each port, offers speed up to 115.2K bps and supports full-duplex communication. In the harsh industrial environment, the on board ESD protection devices attempt to divert this potentially damaging charge away from sensitive circuitry and protect the I-8112iW from permanent damage.
| Specifications |
| Number of Ports |
2 |
| Interface |
TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND |
| Controller |
16C950 compatible |
| Speed: 115200 bps Max. |
| Data bit: 5, 6, 7, 8 |
| Stop bit: 1, 1.5, 2 |
| Parity: None, Even, Odd, Mark, Space |
| FIFO: Internal 128 bytes for each port |
| Interrupt |
Shared Interrupt |
| Bus |
Parallel I/O Module |
| Connector |
DB-9(Male) |
| 4kV ESD Protection |
Yes, Contact for each port. |
| Intra-module Isolation, Field to Logic |
2500Vrms |
| Software |
| Support interrupt driven software library |
| Support VxCOM library |
| LED Display |
| 1 LED as Power Indicator |
| 2 LEDs as Communication(TxD) Indicators |
| 2 LEDs as Communication(RxD) Indicators |
| Power |
| Power Consumption |
0.3 A @ 5 V ,± 5 % |
| Environment |
| Operating Temperature |
-25 ~ 75 °C |
| Storage Temperature |
-40 ~ 85 °C |
| Humidity |
5 ~ 95% RH, non-condensing |
| Dimensions |
| 30mm x 85mm x 114mm (W x L x H) |
|
