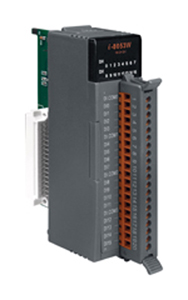

16-channel Isolated Digital Input Module
| Digital Input |
| Input Channels |
16 ( Sink / Source ) |
| Input Type |
Differential |
| On Voltage Level |
+10V ~ 30V |
| Off Voltage Level |
+4V max |
| Input Impedance |
3K Ohms, 0.25W |
| Intra-module Isolation, Field to Logic |
5000Vrms |
| 4KV ESD Protection |
Contact for each channel |
| LED Display |
| 1 LED as Power Indicator |
| 8 LEDs as Digital Input Indicators |
| Power |
| Power Consumption |
0.06A @ 5V = 0.3W ,+/- 5% For Hardware version 1.3 |
| Environment |
| Operating Temperature |
-25 to 75 °C |
| Storage Temperature |
-30 to 85 °C |
| Humidity |
5 to 95%, Non-condensing |
| Dimensions |
| 30 mm x 102 mm x 115 mm (W x L x H) |
|
