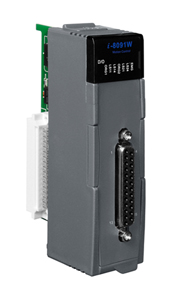

I-8091W stepping motor control card is a micro-computer controlled, 2-axis pulse generation card. It includes a 2K bytes FIFO to receive motion command from host. A micro-computer for profile generation and protection, 2-axis DDA chip to execute DDA function when interpolation command is used, 2500Vrms optical isolation inserted for industrial application.
.jpg)
DN-25+CA-2520
- 2-axis independent, simultaneous stepper motor control / servo motor control ( pulse input type )
- Maximum pulse rate : 1Mpps
- Maximum step counts: 232 -1 steps
- Embedded CPU
- Command type interface
- 2-axis linear,2-axis circular interpolation
- Automatic trapezoidal acceleration / deceleration
- Output pulse modes : CW/CCW or pulse/direction
- Output polarity can be programmable
- 3 optical isolated digital inputs per axis for limit switches
- Programmable limit switch initial condition as normal open(N.O.) or normal close(N.C.)
