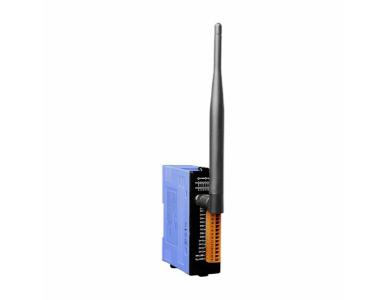

ZT-2053-IOP - ZigBee I/O Pair-connection Module with 14-ch Isolated DI (ZigBee Coordinator). For use in South and Latin America,
by ICP DAS
|
|
|
|
ZT-2053-IOP_SUMMARY.html
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
- Wireless Transmission Range up to 700 m (Default)
- Adjustable RF Transmission Output Power
- 14 Channels Pair-connection of the Digital Input
- DO Safe Value setting for Wireless Disconnection Monitoring
- Configurable I/O Pairing Number
- Surge and ESD Protection
- Supports AES-128 Encryption for the Wireless Communication
- DIN-Rail Mountable
|
|
|
ZT-2053-IOP_DESCRIPTION.html
The ZT-2053-IOP module acts as a ZigBee coordinator that provides 14-channel
digital input pair-connection function with module of ZT-2043 (14-ch sink type
digital output). An embedded I/O channel binding function means that there is
no need to use an external controller. The status of each ZT-2053-IOP channel
triggers the corresponding remote digital output channels on the ZT-2043
module. The ZT-2053-IOP continually transmits updates on the status of the
digital input channels to the remote ZT-2043 to ensure that the digital output
channels are synchronized. The ZT-2053-IOP also provides external DIP switches
for easy configuration, which can be used to synchronize the digital signals
in any environment where wiring is difficult.
ZT-2053-IOP.html
| Isolation
|
| Intra-module Isolation
|
3750 VDC |
| EMS Protection
|
| EFT (IEC 61000-4-4)
|
4 kV for Power Line |
| ESD (IEC 61000-4-2)
|
4 kV Contact for Power Line, Communication Line and each Channel, 8 kV Air for Random
Point |
| Surge (IEC 61000-4-5)
|
3 kV for Power |
| LED Indicators
|
| Status
|
1 x Power / Debug |
| 1 x Communication |
| 14 x Digital Input |
| ZigBee
|
| Antenna
|
2.4 GHz, 5 Omni-Directional |
| Max. Slaves
|
255 |
| Standard
|
ZigBee 2007 Pro |
| Transmission Power
|
11 dBm (FCC Certificated) |
| Transmission Distance (LoS)
|
700 m (Typical) |
| Digital Input
|
| Channels
|
14 |
| Type
|
Dry + Wet Contact |
| ON Voltage Level
|
Dry: Close to GND |
| Wet: +3.5 VDC ~ +30 VDC |
| OFF Voltage Level
|
Dry: Open |
| Wet: Max. +1 VDC |
| Input Impedance
|
3 kOhms, 0.33 W |
| Effective Distance
|
500 m Max. |
| Power
|
| Input Range
|
+10 VDC ~ +30 VDC |
| Consumption
|
Max. 0.72 W |
| Mechanical
|
| Dimensions
|
33 x 78 x 110 (W x L x H) |
| Installation
|
DIN-Rail |
| Environment
|
| Operating Temperature
|
-25 ~ +75C |
| Storage Temperature
|
-30 ~ +70C |
| Humidity
|
10 ~ 90% RH, Non-condensing |
|
