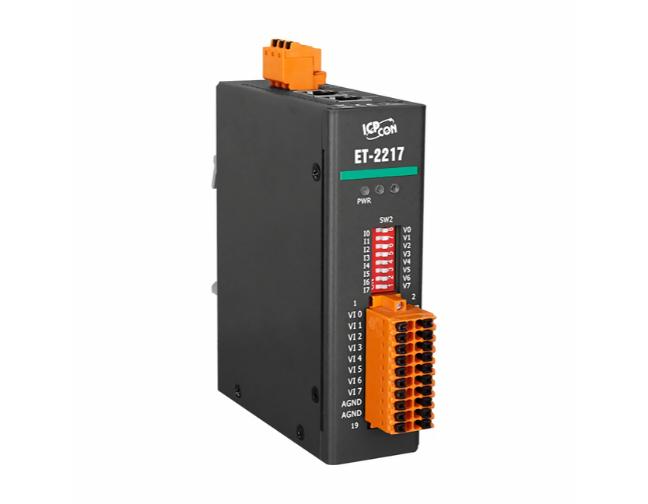

ET-2217 - Ethernet I/O Module with 8/16-channel Analog Inputs
by ICP DAS
|
|
|
|
ET-2217_SUMMARY.html
- Built-in Web Server
- Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
- 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
- Dual Watchdog
- I/O Pair Connection (Push and Pull)
- Built-in I/O
- AI: 8 Channels or 16 Single-ended Analog Inputs
|
|
|
ET-2217_DESCRIPTION.html
The ET-2217 is a module with either 8 differential or 16 single-ended analog inputs.±The module provides a programmable input range for all Analog Input channels, including ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, 0 to 20 mA, 4 to 20 mA, and ±20 mA. Each analog input channel can be configured with an individual input range, providing high overvoltage protection up to 120 VDC and overcurrent protection up to 50 mA at 110 VDC/VAC. Voltage and current input can be selected via a DIP switch.
ET-2217.html
| Software |
| Built-in Web Server |
Yes |
| CPU Module |
| CPU |
32-bit ARM |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| 2-way Isolation |
Ethernet: 1500 VDC
I/O: 3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
Run, Ethernet |
| Analog Input |
| Channels |
8 Differential or 16 Single-ended |
| Type |
Voltage, Current
(DIP switch selectable) |
| Range |
Voltage: ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V
Current: ±20 mA, 0 ~
+20 mA, +4 ~ +20 mA |
| Resolution |
16-bit |
| Accuracy |
Normal Mode: ±0.1% of FSR
Fast Mode: ±0.5% of FSR |
| Sampling Rate |
Normal Mode: 20 Hz (total channels)
Fast Mode: 200 Hz (total channels)
|
| Input Impedance |
Voltage: 2 MO (Differential), 1 MO (Single-ended)
Current: 137 O
(Differential) |
| Common Voltage Protection |
±200 VDC |
| Overvoltage Protection |
120 VDC |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
For 4 to 20 mA only |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass |
Yes |
| Security |
Password and IP Filter |
| Protocol |
Modbus TCP, Modbus UDP, MQTT, and SNMP V2c |
| Power |
| Reverse Polarity Protection |
Yes |
| Consumption |
3.3 W (max.) |
| Powered from Terminal Block |
+10 to +48 VDC |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
33 x 127 x 117 (W x L x H) |
| Installation |
DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Environment |
| Operating Temperature |
-25 to +75 C |
| Storage Temperature |
-40 to +80 C |
| Humidity |
10 to 90% RH, Non-condensing |
|
