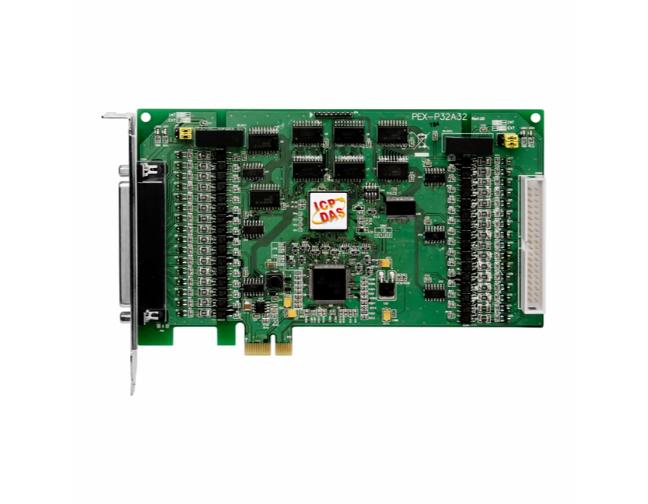

ICP DAS PEX-P32A32 - The PEX-P32A32 is the new generation product that ICP DAS provides to meet RoHS compliance requirement.
by ICP DAS
|
|
|
|
PEX-P32A32_SUMMARY.html
- Support the +3.3/+5 V PCI bus for PISO-P32A32U(-5V)
- Support the PCI Express x1 for PEX-P32A32U
- 32 Optically-isolated Digital Input Channels
- 32 Optically-isolated Digital Output Channels (Source, PNP)
- Built-in DC/DC converter with 3000 VDC isolation
- Card ID function
- Four isolated banks
- 3750 Vrms photo-isolation protection
- Output status readback for PEX-P32A32/PISO-P32A32U(-5V) (Version 4.0 or above)
|
|
|
PEX-P32A32_DESCRIPTION.html
The PEX-P32A32 is the new generation product that ICP DAS provides to meet RoHS compliance requirement. The new PEX-P32A32 is designed as an easy replacement for the PISO-P32A32U without requiring any modification to the software or the driver.
PEX-P32A32.html
| Digital Input |
| Isolation Voltage |
3750 Vrms (Using external power) |
| Channels |
32 |
| Compatibility |
Sink or Source, Photo coupler isolated channel with common power or
ground |
| Input Voltage |
-
|
| Input Impedance |
3 KO, 0.5 W |
| D/I Power |
External |
| Response Speed |
4 kHz (Typical) |
| Digital Output |
| Isolation Voltage |
3750 Vrms |
| Channels |
32 |
| Compatibility |
Source, Open Collector |
| Output Capability |
100 mA/+30 V for one channel @ 100% duty |
| Response Speed |
4 kHz (Typical) |
| General |
| Bus Type |
PCI Express x1 |
| Data Bus |
8-bit |
| Card ID |
Yes (4-bit) |
| I/O Connector |
Female DB37 x 1
40-pin box header x 1 |
| Dimensions (L x W x D) |
180 mm x 105 mm x 22 mm |
| Power Consumption |
600 mA @ +5 V |
| Operating Temperature |
0 ~ 60 C |
| Storage Temperature |
-20 ~ 70 C |
| Humidity |
5 ~ 85% RH, non-condensing |
|
|
