ICP DAS PCI-P8R8 - 8- channel isolated digital input, 8- channel relay output
by ICP DAS
|
|
|
|

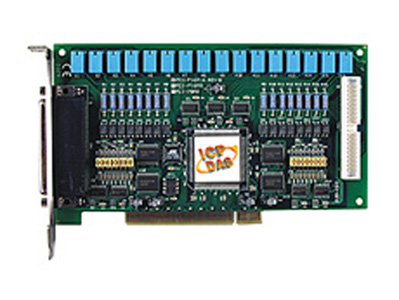

PCI Board with 8 Channels of Isolated Digital Input and 8 Relay Outputs. Includes one CA-4002 D-Sub connector
|
|
|
The PCI-P8R8 provides 8 optically isolated inputs and 8 relay outputs. The PCI-P8R8 has two 37-pin D-Sub connectors. It can be installed in a 5V PCI slot and can support true "Plug & Play".
- 8 Relay output channels
- 8 Optical isolated digital input channels
- DC signal input with filter or Without filter
- AC Signal input with filter
- Software:
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- LabVIEW toolkit for Windows
- Toolkit for OCX 95/98
- Toolkit for OCX NT
- Toolkit for OCX 2000/XP
- Driver for LINUX
- Driver for DasyLab

| Relay Outputs |
| Contact Rating |
0.5A/120Vac,DC/1A 30Vdc |
| Contact arrangement |
Output channel 0 -3 are form C |
| Output channel |
4-7 are Form A |
| Operating time |
5 mSec |
| Release time |
10 mSec |
| Expected life |
> 100,000 times (at 30V ,1A) |
| Optical Isolated Digital Input |
| Type |
None- polarized Optical Isolation (PC-814) |
| Input voltage |
AC/DC 5-24V or Vac (50- 1khz) |
| Operating Temperature |
0 to 60 deg/C |
| Input impedance |
1.2 Kohm |
| Response time |
20u Sec (Without filter) / 22m Sec ( With filter) |
| Isolated |
500v channel-channel / channel - Ground |
| General Environment |
| Operation Temperature |
0° to 50°C |
| Storage Temperature |
-20°C to 70°C |
| Humidity |
0% to 90% none-condensing |
| Dimensions |
180mm x 105mm |
|
|
|
|
