Support O-Ring (recovery time < 30ms) andMSTP(RSTP/STP compatible) for Ethernet RedundancyO-Chain allow multiple redundant network ringsSupportstandard IEC 62439-2 MRP*NOTE(Media Redundancy Protocol) functionSupport IPV6 new internet protocol versionSupport Modbus TCP protocolSupport IEEE 802.3az Energy-Efficient Ethernet technologyProvided HTTPS/SSH protocol to enhance network securitySupport SMTP client and NTP serverSupport IP-based bandwidth managementSupport application-based QoS managementSupport Device Binding security functionSupport DOS/DDOS auto preventionIGMP v2/v3 (IGMP snooping support) for filtering multicast trafficSupport SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network ManagementSupport ACL and 802.1x User Authentication for securitySupport 10K Bytes Jumbo FrameSFP socket support DDM functionMultiple notification for warning of unexpected eventWeb-based ,Telnet, Console (CLI), and Windows utility (Open-Vision) configurationSupport LLDP ProtocolSupport DBU-01 backup unit device to quickly backup/restore configuration19 inches rack mountable design
|
|
|
RGS-9244GP_DESCRIPTION.html

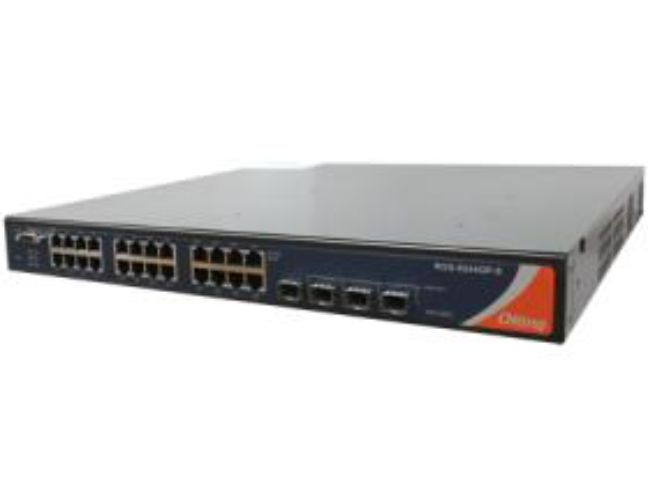

RGS-9244GP are Gigabit managed redundant ring Ethernet switch with 24x10/100/1000Base-T(X) ports and 4x100/1000Base-X SFP ports. These switches support Ethernet Redundancy protocol,O-Ring(recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And RGS-9244GP series support wide operating temperature from -40oC to 75oC. RGS-9244GP series can also be managed centralized and convenient by Open-Vision, as well as the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
RGS-9244GP.html
Physical ports
|
10/100/1000Base-T(X) ports in RJ45 |
24 |
100/1000Base-X with SFP port |
4 |
RS-232 Serial Console port |
RS-232 in DB-9 connector with console cable.
115200bps, 8, N, 1 |
LED Indicators
|
Power Indicator (Power) |
Green : Power indicator |
Ring Master Indicator (R.M.) |
Green : Indicates that the system is operating in
O-Ring Master mode |
O-Ring Indicator (Ring) |
Green : Indicates that the system operating in
O-Ring mode Green Blinking : Indicates that the Ring is broken. |
Fault Indicator (Fault) |
Amber : Indicate unexpected event occurred |
10/100/1000Base-T(X) RJ45 port indicator |
Green for Link/Act indicator Dual color LED
for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / Off-light for 10Mbps |
100/1000Base-X SFP Port Indicator |
Green for port Link/Act. |
Power
|
Power consumption (Typ.) |
30 watts max. |
Power Input |
100 ~ 240VAC with power socket |
Physical Characteristic
|
Dimensions (mm) |
431 (W) x 342 (D) x 44 (H)mm (16.97 x 13.46 x
1.73 inch) |
Weight (g) |
4210 g |
Technology
|
Ethernet Standards |
IEEE 802.3 for 10Base-T IEEE 802.3u for
100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.z for 1000Base-X
IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w
for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree
Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery
Protocol)
|
PROFINET conformance class |
8k |
MAC Table |
8 |
Priority Queues |
8 |
Processing |
Store-and-Forward |
Switch Properties |
Switching latency: 7 us Switching bandwidth:
56Gbps Max. Number of Available VLANs: 4095 VLAN ID Range : VID 1 to 4094 IGMP multicast groups:
128 for each VLAN Port rate limiting: User Define |
Jumbo frame |
Up to 10K Bytes |
Security Features |
Device Binding security feature Enable/disable
ports, MAC based port security Port based network access control (802.1x) Single
802.1x and Multiple 802.1x MAC-based authentication QoS assignment Guest VLAN
MAC address limit TACACS+ VLAN (802.1Q ) to segregate and secure network traffic
Radius centralized password management SNMPv3 encrypted authentication and access
security Https / SSH enhance network security Web and CLI authentication and
authorization Authorization (15 levels) IP source guard
|
Software Features |
IEEE 802.1D Bridge, auto MAC address
learning/aging and MAC address (static) Multiple Registration Protocol (MRP) MSTP (RSTP/STP
compatible) Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units
TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q)
with VLAN tagging IGMP v2/v3 Snooping IP-based bandwidth management
Application-based QoS management DOS/DDOS auto prevention Port configuration, status,
statistics, monitoring, security DHCP Server/Client DHCP Relay Modbus TCP
DNS client proxy SMTP Client NTP server |
Network Redundancy |
O-Ring Open-Ring O-Chain MRP MSTP
(RSTP/STP compatible) |
Environmental
|
Storage Temperature |
-40 to 85oC (-40 to 185oF) |
Operating Temperature |
-40 to 75oC (-40 to 167oF) |
Operating Humidity |
5% to 95% Non-condensing |
|
|
|
