Antaira LMP-1604G-4XS-bt-T - 16-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 12*10/100
by ANTAIRA
|
|
|
|
- Antaira 16-port industrial gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch
- 12* 10/100/1000BASE-T (90W/Port) and 4* 1G/ 2.5G/ 10G SFP+ Slots
- 48-55 VDC Power Input
- EOT: -40ºC to 75º
|
|
|
LMP-1604G-4XS-bt-T

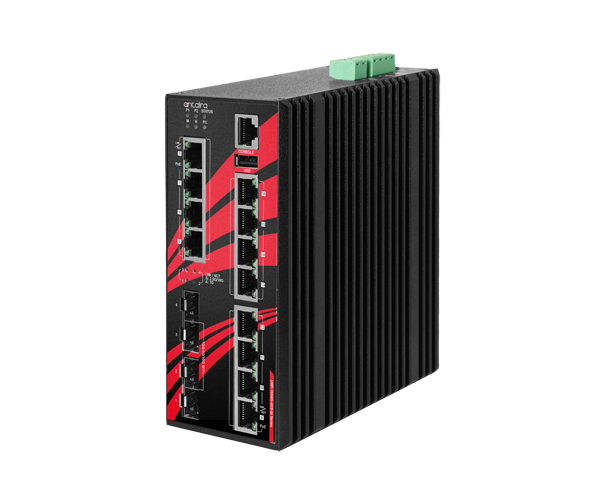

Antaira Technologies’ LMP-1604G-4XS-bt-T is an 16-port managed Gigabit PoE++ Ethernet switch embedded with 12*10/100/1000T Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port, and 4*1G/2.5G/10G SFP+ slots for fiber connection. It is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.
LMP-1604G-4XS-bt-T is IP30 rated and DIN-rail mountable. It supports extended operating temperature from -40°C to 75°C. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment. With a compact form and all connections facing the front of the Ethernet switch making it easy viewing of installations in a reserved space.
SPECIFICATIONS
Hardware Specifications
- Total Ports: 16
- RJ-45 GE: 12
- SFP 10G Fiber: 4
- 90W PoE++: 12
- PoE Power Budget: 360W
- System Power: 25W
- Input Voltage: 48-55VDC
- Operating Temperature: -40ºC to 75ºC
|
|
|
|
