Antaira LMP-1204G-SFP-bt-T-CC - 12-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 4*10/1
by ANTAIRA

Antaira LMP-1204G-SFP-bt-T-CC

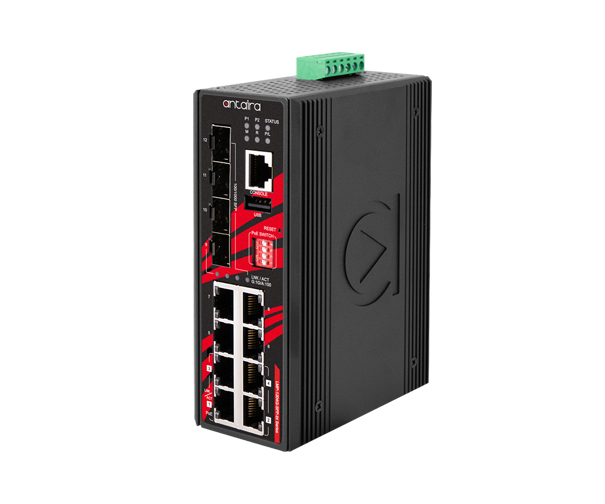

Antaira Technologies’ LMP-1204G-SFP-bt-T-CC is a 12-port industrial Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port, 4*10/100/1000Tx Ethernet ports with IEEE 802.3af/at support for a maximum of 30W/Port, and 4*100/1000 dual rate SFP slots for fiber connection. The LMP-1204G-SFP-bt-T-CC industrial switch is a fully-manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. The industrial PoE switch supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol with a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.

The LMP-1204G-SFP-bt-T-CC industrial PoE switch is IP30-rated and is DIN-rail or wall mountable, wall mounts are included. It also has an extended temperature range (EOT: -40°C to 75°C). The 802.3bt switch also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water/wastewater, oil/gas/mining, factory automation, security surveillance, ITS, and any other outdoor or harsh environment. Conformal Coating has been applied for additional protection.

Antaira LMP-1204G-SFP-bt-T-CC : 12- Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx (90W/Port), 4*10/100/1000Tx (90W/Port), 4*10/100/1000Tx (30W/Port), and 4*100/1000 SFP Slots; EOT: -40ºC to 75ºC; with conformal coating

LMP-1204G-SFP-bt-T-CC.pdf

600 K
