Antaira INJ-0201G-bt-AC-100-T - Industrial Gigabit PoE++ Injector - 1*10/100/1000M Base-T(X) (100W/Port) and 1*10/100/1000M Base
by ANTAIRA
|
|
|
|
- Supports a.PoE up to 100W: 95W High PoE, 95W PoH, 100W High PoE, 100W PoH, 4PPoE 100W
- Supports 10/100/1000T Gigabit IEEE 802.3bt Compliant PoE++ (90W/Port)
- IEEE 802.3af/at/bt PoE++ Compliant
- Provide Data and Power over Ethernet to Power Device
- DIP-Switch Setting for PoE Mode and Dual PD Check
- 100-240VAC AC Power Input Design
- IP30 Protection
- Operating Temperature Range: -40°C to 75°C
- DIN-Rail or Wall Mountable
- NDAA and TAA Compliant
- Made in Taiwan
|
|
|

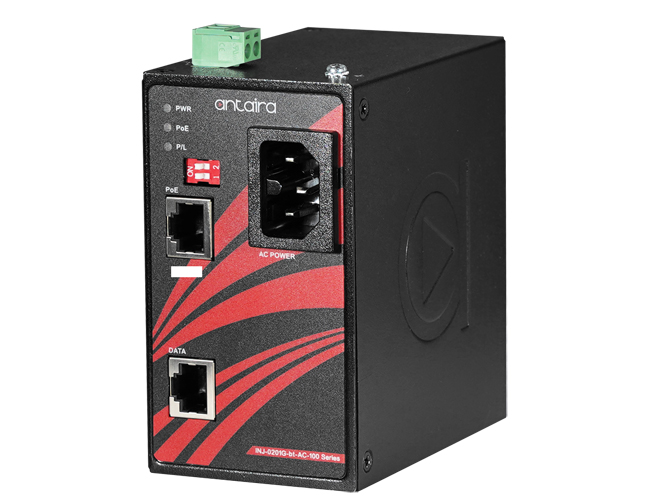

Antaira INJ-0201G-bt-AC-100-T
Antaira Technologies' INJ-0201G-bt-AC-100-T is a high-performance, cost-effective solution that enables the deployment of Power over Ethernet (PoE) in non-PoE environments. This PoE++ injector seamlessly combines data and power from a non-PoE switch and power input, delivering it over a single Ethernet cable to a Powered Device (PD). Additionally, the INJ-0201G-bt-AC-100-T features an integrated 100-240VAC AC power input, ensuring a full 100W PoE output. IEEE 802.3af/at/bt PoE++ Compliant. For applications requiring maximum power, this model also supports an Enhanced PoE mode to provide up to 100W to the powered device, making it ideal for high-power automation, security and transportation applications. Designed for demanding industrial environments, the fan-less INJ-0201G-bt-AC-100-T provides IP30 protection and supports an extended operating temperature range of -40°C to 75°C, establishing it as a rugged and reliable choice for the industrial market. This AC PoE Injector is a best choice to power IP PTZ cameras in wide temperature installations.
Specifications
- total ports: 2
- RJ45 GE: 2
- 100W PoE++: 1
- PoE power budget: 100W @100-240 VAC
- System power: 3.9W
- Input voltage: 100-240VAC, 50-60Hz
- Operating Temp: -40~75ºC
- Mounting: DIN-Rail, wall mount
- Housing: metal, IP30
- PoE LED indicator: Yes
|
|
|
|
