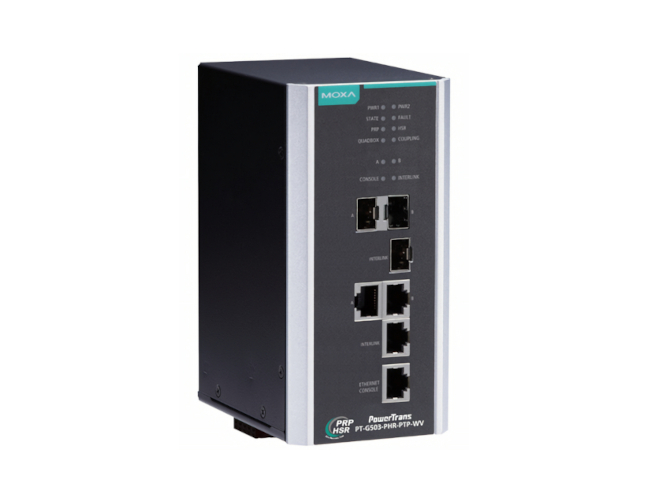

• Technology |
Standards |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX |
Protocols |
PRP/HSR, SNMPv1/v2c/v3, DHCP Client, BootP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, LLDP, IPv6, SNMP Inform, NTP Client/Server |
MIB |
IEC 62439-3 MIB |
• Interface |
Gigabit Ethernet |
3 x 10/100/1000BaseT(X) ports or 100/1000BaseSFP combo ports |
Console Port |
Ethernet console (10/100/1000 Mbps RJ45), USB-serial console (Type B connector) |
Storage Port |
USB storage (Type A connector for ABC-02-USB) |
Button |
Reset button |
Alarm Contact |
1 relay output with current carrying capacity of 1 A @ 24 VDC |
Digital Inputs |
1 input with the same ground, but electrically isolated from the electronics• +13 to +30V for state “1”
• -30 to +3V for state “0”
• Max. input current: 8 mA |
System LED Indicators |
PWR1, PWR2, STATE, FAULT, PRP, HSR, QUADBOX, COUPLING |
Port LED Indicators |
A, B, ETHERNET CONSOLE, INTERLINK |
• Power Requirements |
Input Voltage |
• WV: 24/48 VDC (18 to 72 VDC)
• HV: 110/220 VDC/VAC (88 to 300 VDC, 85 to 264 VAC) |
Input Current |
• Max. 0.660/0.360 A @ 24/48 VDC
• Max. 0.150/0.080 A @ 110/220 VDC
• Max. 0.260/0.170 A @ 110/220 VAC |
Overload Current Protection |
Present |
Connection |
5-pin terminal block |
Reverse Polarity Protection |
Present |
• Physical Characteristics |
Housing |
IP40 protection |
Dimensions |
80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in) |
Weight |
1210 g |
Installation |
DIN rail mounting |
• Environmental Limits |
Operating Temperature |
-40 to 85°C (-40 to 185°F) |
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
• Standards and Certifications |
High Availability Automation Networks |
IEC 62439-3 |
Safety |
UL 508 |
EMI |
FCC Part 15 Subpart B Class A, EN 55022 Class A |
Power Automation |
IEC 61850-3, IEEE 1613 |
Rail Traffic |
EN 50121-4 |
