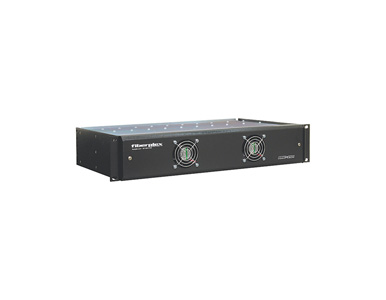

The Patton Model RMC-2101-RZ-UK provides up to nine available slots for mounting FOI devices. Slot 10 must be occupied by a PSM-2010 power supply module which is included with the chassis. An optional second PSM-2010 can be added for power redundancy, leaving eight available slots for FOI devices.
A cable bay is provided for cable routing and enhanced air flow through two front exhaust fans. Each FOI device must also be accompanied by a CMA-2001 chassis mount adapter, which slides the fiber optic isolator into the slot and assures correct alignment of the isolator power connector to the power bus inside the RMC-2101. For TEMPEST or other high security applications, Patton recommends the RMC-2101R.
