DITHD 05-17170 - USB VGA KVM Adapter
by DITHD

DITHD 05-17170

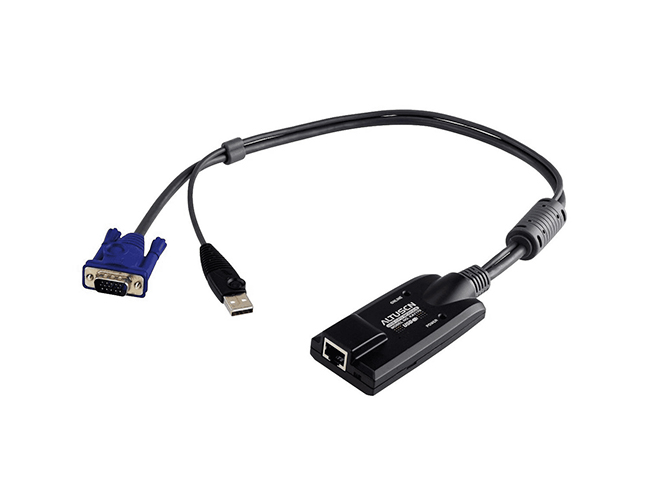

The KA7170 USB KVM Adapter Cable connects the KVM switch to the video and USB ports of the target computer. With its small form factor and light weight design, it represents the next generation of USB KVM Adapter Cables - offering superior signal compensation and delay skew techniques for greatly enhanced video quality.

Specifications

• Connectors
  • Link: 1 x RJ-45 female
  • Computer:
    • 1 x USB Type A Male
      1 x HDB-15 Male
• LEDs
  • Online: 1 (Green)
  • Power: 1 (Orange)
• Environmental
  • Operating temperature: 0~50ºC
  • Storage temperature: -20~60ºC
• Physical properties
  • Housing: plastic
  • Weight: 0.14 kg ( 0.31 lb )
  • Dimensions (LxWxH):
    • 9.00 x 4.30 x 2.18 cm
      (3.54 x 1.69 x 0.86 in.)
• Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
