DITHD 05-17183

DITHD 05-17183 - USB-C Virtual Media KVM Adapter
by DITHD

Connects any Cat 5 KVM switch to a target computer via a single USB-C
Superior video quality – supports Full HD resolution of up to 1920 x 1200
Auto Signal Compensation (ASC) – no DIP switch setting needed for different distances
Keyboard and mouse emulation – keeps the server functioning smoothly when it’s disconnected from the switch's KVM port or is relocated to a different KVM port
Virtual media support
Smart card / CAC reader support
Built-in ASIC for greater stability and compatibility
Supports hot-plugging
Compact size
Upgradeable firmware

Description
Specification
Datasheet

DITHD 05-17183

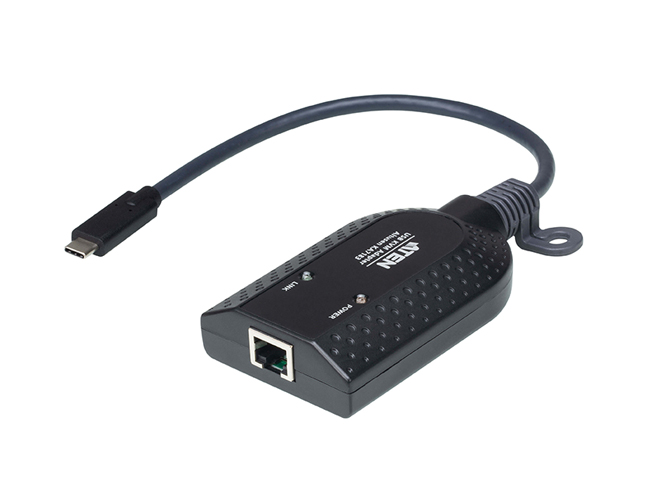

The KA7183 KVM Adapter empowers any Cat 5 KVM switch* to connect to and manage a USB-C compatible target computer. Via just a single USB-C plug, it is able to connect a target computer while fulfilling keyboard, video, mouse, and virtual media or smart card / CAC reader functions.

Advanced features provided by KA7183 include superior signal compensation and delay skew technologies for greatly enhanced video quality, as well as its user-friendly, compact and lightweight design.

Specifications

Connectors
- Link: 1 x RJ-45 female
- Computer:
  - 1 x USB Type C Male
LEDs
- Link: 1 (Green)
- Power: 1 (Orange)
Environmental
- Operating temperature: 0~50ºC
- Storage temperature: -20~60ºC
Physical properties
- Housing: plastic
- Weight: 0.07Kg (0.15lb)
- Dimensions (LxWxH):
  - 9.10 x 5.60 x 2.12 cm
    (3.58 x 2.2 x 0.83 in.)
