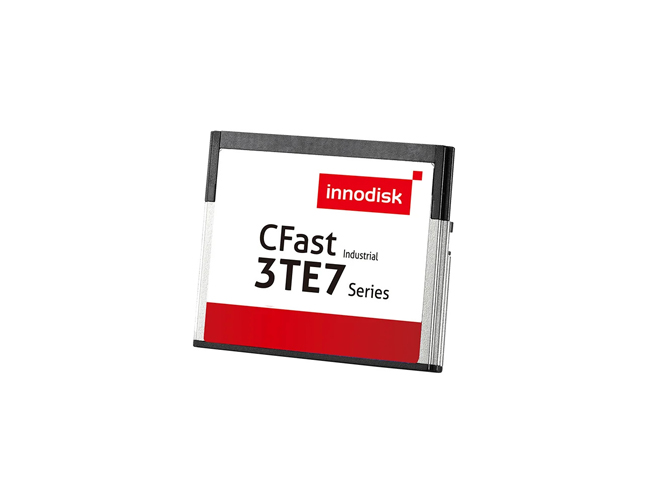

Innodisk DECFA-01TDK1KWAQF - CFast 3TE7 1TB, -40 to 85 Degree C
by InnoDisk
|
|
|
|
- 1 TB
- High IOPS
- iSMART disk health monitoring
- iPower Guard for protecting unstable start up and shut down
- iData Guard for abnormal power failure
- DEVSLP supported
- Supports wide temperature from -40°C to 85°C
|
|
|
Innodisk DECFA-01TDK1KWAQF
Innodisk CFast 3TE7 is SATA III 6.0 Gb/s Flash based disk, which adopts latest SATA III NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes 3TE7 series have outstanding high IOPS, better data integrity and extended lifespan through reducing the bad block number happening. Built-in thermal sensor, and iData Guard ensure data integrity and reliability of CFast 3TE7 for industrial applications.
Specifications
- Model Name: CFast 3TE7
- Flash Type: 3D TLC
- Interface: SATA III 6.0 Gb/s
- Form Factor: CFast 2.0
- Capacity: 1 TB
- Sequential R/W (MB/sec, max.): 560/490
- P/E Cycle: 3,000
- TBW (Max.): 1,200
- Storage Temperature: -40~85ºC
- Max. power consumption: 2.5W
- Max. channels: 4
- External DRAM buffer: N
- Feature: AES, H/W Write Protect, S.M.A.R.T.
- Dimension (WxLxH/mm): 42.8 x 36.4 x 3.6
- Vibration: 20G @ [7~2000 Hz]
- Shock: 1500G @ 0.5ms
- MTBF: >3 million hours
|
|
|
|
