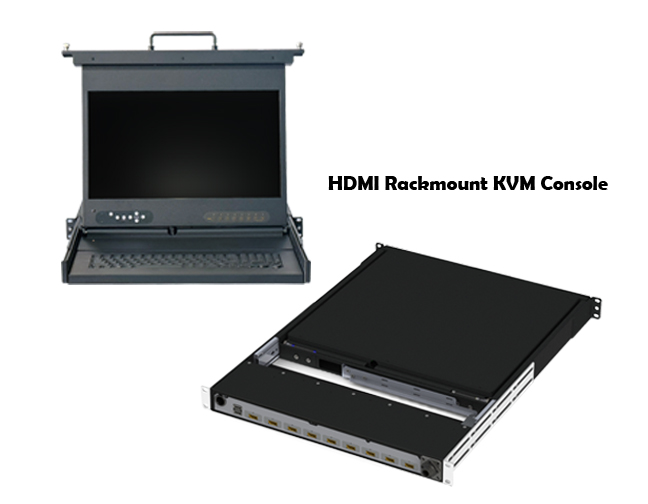

DITHD RD1U-CAT24173W.B2U.O31.V35x.E8 - 1U, 24" rugged aluminum rackmount KVM console with clamshell design, 17.3" LED-backlit LC
by DITHD
|
|
|
|
- MIL-STD 810F/G Compliant / RUGGED Construction
- Keyboard: 103 Keys with Integrated 2 Button Glide Pad
- Displays: 17.3" LED Backlit LCD with Anti-Glare, Hight Bright Available
- Switches: HDMI (8) Ports Available
- CAC Card Reader Included
- PCAP Touch Available
- MIL Grade C300 Solid Bearing Friction Slide Rails
- Thumb Screw Front Face with Collapsible Handle
- Power Usage: Less than 45W | DC 12V Power Input
- Dimensions: 19" W x 1.75" H x 24" D
- Operating Temp: 0°C to +70°C
|
|
|
DITHD RD1U-CAT24173W.B2U.O31.V35x.E8
(RD1U) 1 rack unit tall, (CAT24) 24" rack depth rugged aluminum rackmount KVM console, clamshell de sign. Built to meet MIL-STD 810F/G Standard. (173W) 17.3" LED backlit LCD display. (B2U) 103 button keyboard with integrated 2 button glide pad. (O31) 8 port HDMI KVM switch. (V35x) FHD 1080x1920 max. resolution @60Hz video controller board. (E8) Locking front face (thumbscrew) with folding handle. CAC card reader for additional security.
Specifications
- HDMI Rackmount KVM console
- Display size: 173W (17.3")
- Input interface: (8) HDMI port (female)
- Resolution: up to 4K (3840 x 2160 @30Hz)
- Hot keys: none
- Approvals: UL, CE, ROHS, compliant
- Operating temp: -50~80ºC (-58~176ºF)
- Storage temp: -50~80ºC (-58~176ºF)
- Humidity: up to 80% (no condensation)
|
|
|
|
