DITHD RD1U-CAT2419LH.B2U.I8.V35x.E8

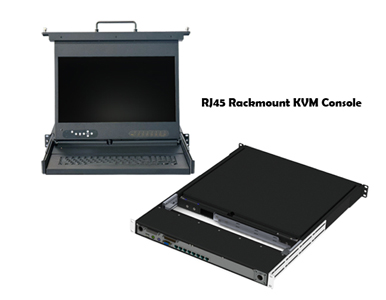

DITHD RD1U-CAT2419LH.B2U.I8.V35x.E8 - 1U, 24" rugged aluminum rackmount KVM console with clamshell design, 19" LED-backlit LCD d
by DITHD

MIL-STD 810F/G Compliant / RUGGED Construction
Keyboard: 103 Keys with Integrated 2 Button Glide Pad
Displays: 19" LED Backlit LCD with Anti-Glare, Hight Bright Available
Switches: RJ45 (8) Ports Available
CAC Card Reader Included
PCAP Touch Available
MIL Grade C300 Solid Bearing Friction Slide Rails
Thumb Screw Front Face with Collapsible Handle
Power Usage: Less than 45W | DC 12V Power Input
Dimensions: 19" W x 1.75" H x 24" D
Operating Temp: -30°C to +85°C

Description
Specification
Datasheet

DITHD RD1U-CAT2419LH.B2U.I8.V35x.E8

(RD1U) 1 rack unit tall, (CAT24) 24" rack depth rugged aluminum rackmount KVM console, clamshell design. Built to meet MIL-STD 810F/G Standard. (19LH) 19" LED backlit LCD display. (B2U) 103 button keyboard with integrated 2 button glide pad. (I8) 8 port RJ45 KVM switch with required RJ45 KVM Modules. (V35x) FHD 1080x1920 max. resolution @60Hz video controller board. (E8) Locking front face (thumbscrew) with folding handle. CAC card reader for additional security.

Specifications
