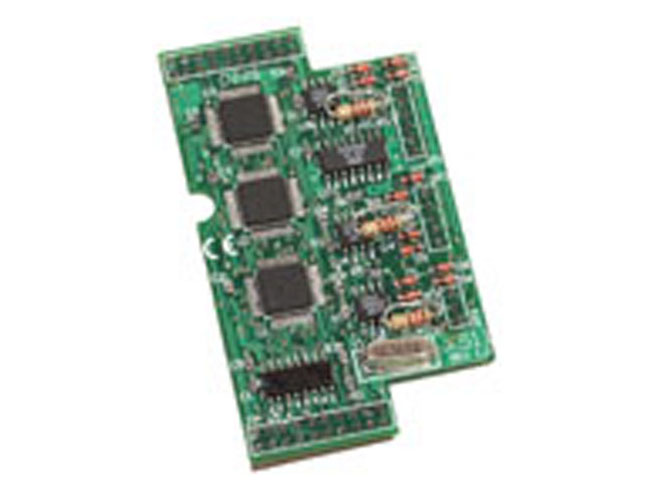

X510-256 - 1 RS 232 port, 5 digital inputs, 5 digital outputs, and 256 K EEPROM
by ICP DAS
|
|
|
|
1 Port RS-232 (3-Pin), 5 Channel D/I, 5 Channel D/O, and EEPROM 128K x2
|
|
|
For use with 7188XB, 7188XG, 7188EX, and 7188EG controllers
Parallel I/O:
- RS-232 port : 1
- COM3 : TXD, RXD, GND
- 16550 compatible
- Internal FIFO : 16 bytes
- Transmission speed: 115.2K BPS max.
- EEPROM: 128K * 2 bytes
Endurance:100,000 Write Cycles/Page
Data Retention: 40 Years
- Isolated : none
Digital Input
- Channels : 5
- Input Voltage:
Logic high level (3.5V ~ 30V)
Logic low level (0V ~ 1V)
- Isolated : none
Digital Output
- Channels: 5
- Open-collector Output : 100 mA / 30V max
- Isolated : none
|
|
