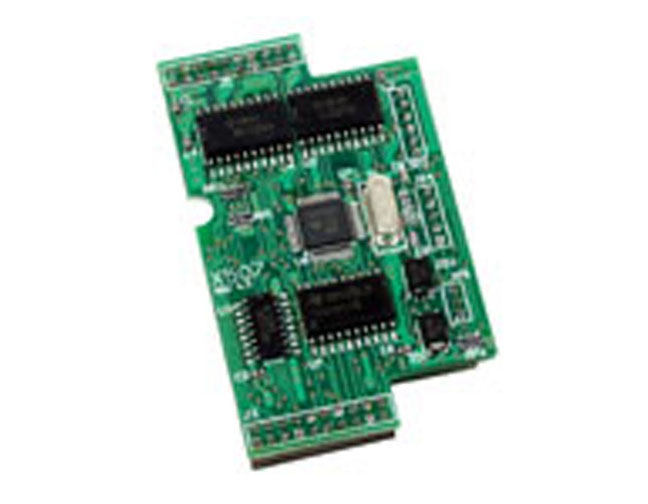

X507 - Support one channel RS 422/RS485 and DIO
by ICP DAS
|
|
|
|
1 Port RS-422/485, 4 Channel D/I, and 4 Channel D/O Module for uPAC-7186EX, and I-7188EX/EG/XB/XG
|
|
|
For use with 7188XB, 7188XG, 7188EX, and 7188EG controllers
Paralell I/O
- RS-422/485 port : 1
- COM3 :
- RS-422 : RXD+, RXD-, TXD+, TXD-
- RS-485 : TXD+, TXD-
- 16550 compatible
- Internal FIFO : 16 bytes
- Transmission speed: 115.2K BPS max.
- Self-Turner ASIC inside
- Isolated : none
Digital Input
- Channels : 4
- Input Voltage:
- Logic high level (3.5V ~ 30V)
- Logic low level (0V ~ 1V)
- Isolated : none
Digital Output
- Channels: 4
- Open-collector Output : 100 mA / 30V max
- Isolated : none
|
|
