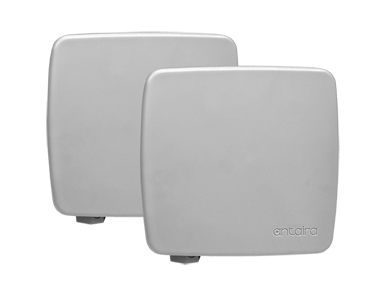

Antaira AIROLINX-GO-KIT-IP67-T - Industrial IP67 Single Band 5 GHz Preconfigured Point-to-Point Bridge / CPE Integrated 16 dBi P
by ANTAIRA
|
|
|
|
- Preconfigured PtP Kit (2 units) Ships Pre-Paired for Plug-and-Play Deployment
- Transparent Layer 2 Bridge Operation
(No Management IP Required to Pass Traffic)
- Integrated 5GHz Dual-Chain Radio (2x2) with Wireless Speed Up to 300Mbps
- Airolinx Go Studio Software for Discovery, First-Run Security, RF Optimization, Alignment, and Link Test Reporting
- Integrated 16dBi Panel Antenna for Extended-Range Up to 2+ Miles
- Video-Grade Range 1~2 miles (1.6~3.2km) Line-of-Sight for Consistent Higher Throughput
- Longer Distance Will Result in Lower Throughput
- Passive PoE Input (8~28V) with Included 24V PSU and Passive PoE Injector (per unit)
- Rugged IP67 Enclosure for Permanent Outdoor Installation
- Operating Temperature: -40°C to 75°C (-40°F to 167°F)
- 5-Year Warranty
|
|
|

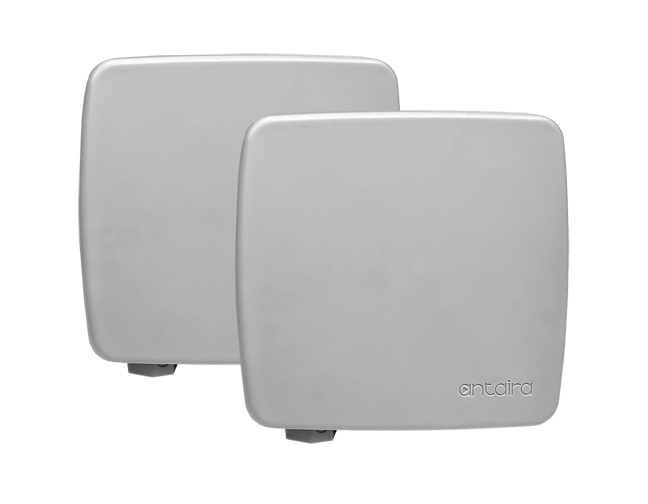

Antaira AIROLINX-GO-KIT-IP67-T
Antaira Technologies' Airolinx Go is an outdoor, IP67-rated, preconfigured wireless bridge kit purpose-built for Security and Intelligent Transportation Systems (ITS) deployments where fast installation, predictable performance, and low total cost are critical. Each kit ships as a matched pair (CONNECT / LISTEN) that establishes a secure point-to-point link out of the box - mount, power, align, deploy.
Airolinx Go Studio is the primary differentiator, providing Layer-2 discovery and commissioning workflows that work even when devices ship without a management IP. Installers can validate links, optimize channel selection, align antennas with real-time feedback, and generate link test reports for close-out documentation.
APPLICATIONS
- Security: IP surveillance camera backhaul, gate/entry systems, perimeter coverage, temporary event deployments
- ITS: Intersection-to-intersection backhaul, roadside cabinet connectivity, temporary construction-zone links
AIROLINX GO STUDIO (SOFTWARE)
- Layer-2 discovery and device identification
- Mandatory first-run security workflow: Enforce default password change via MAC access
- Commissioning wizard for PtP kits (and optional PtMP workflows)
- Quick RF Optimizer: Explainable channel scoring with safe apply/rollback
- Antenna Alignment: Real-time RSSI/SNR with optional audible tone feedback
- Link Test: Ping and throughput with exportable HTML/PDF report
Specifications
-
Memory: 64 MB RAM
-
Ethernet: 1 × 10/100/1000Base-T RJ45
-
PoE Input: Passive PoE-In
-
Input Voltage: 8-28 VDC
-
Max Power Consumption: 11W
-
Operating Temperature: -40~75°C
-
IP Rating: IP64
-
Mounting: Pole, Wall
|
|
|
|
