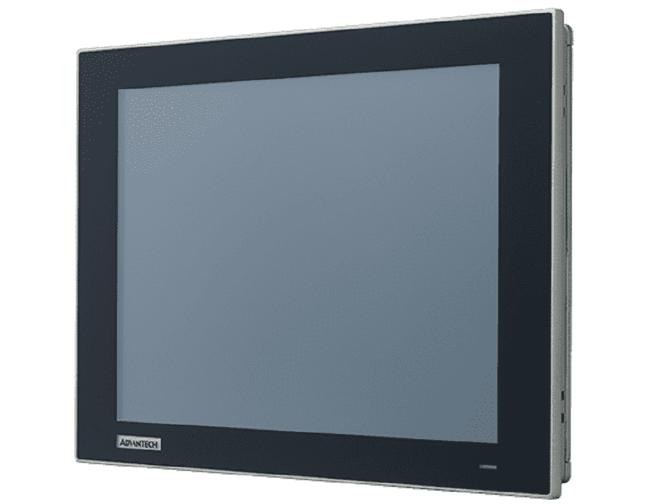

Advantech FPM-212-R9AE - 12" XGA Industrial Monitors with Resistive Touch Control, Direct HDMI, DP, and VGA Ports
by Advantech
|
|
|
|
FPM-212-R9AE_SUMMARY.html
- 12" XGA TFT LED LCD with 50
- 000 backlight lifetime
- Direct HDMI
- DP and VGA input interfaces
- Anti-glare screen with tempered glass
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
- Lockable I/O connectors
- Slim design enables easy installation
- Supports various mount options: panel
- desktop
- and VESA arm
|
|
|
FPM-212-R9AE_DESCRIPTION.html
The FPM-212-R9AE is an industrial-grade monitor with sleek, simple lines and a true-flat touchscreen.
FPM-212-R9AE.html
| Environment |
| Ingress Protection |
Front Panel IP66 |
| Operating Temperature |
0~50 °C (32~122 °F) |
| Storage Humidity |
10~95% RH (non-condensing) |
| Storage Temperature |
-20~60 °C (-4~140 °F) |
| Vibration Protection |
1 Grms, random |
| Hardware |
| Certification |
CB, UL, CE, FCC Class A, CCC, BSMI |
| OS Support |
Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP,
Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB |
| Power Input |
24 VDC |
| Video Port |
HDMI, DP, VGA |
| I/O Interface |
| Power Connector |
1 x Lockable DC Jack |
| LCD Display |
| Backlight Life (hrs) |
50,000 |
| Display Size |
12" |
| Luminance (cd/m2) |
600 |
| Max. Resolution |
1024 x 768 |
| Viewing Angle (H/V°) |
178/178 |
| Mechanical |
| Dimension (W x H x D) |
311.8 x 238.0 x 53 mm |
| Enclosure |
Die cast magnesium alloy, Die-casting aluminum |
| Mounting |
Stand, Wall, VESA, Panel |
| Weight (Net) |
3.2 kg (7.05 lb) |
| Touchscreen |
| Touch Type |
5-wire resistive |
|
|
|
|
