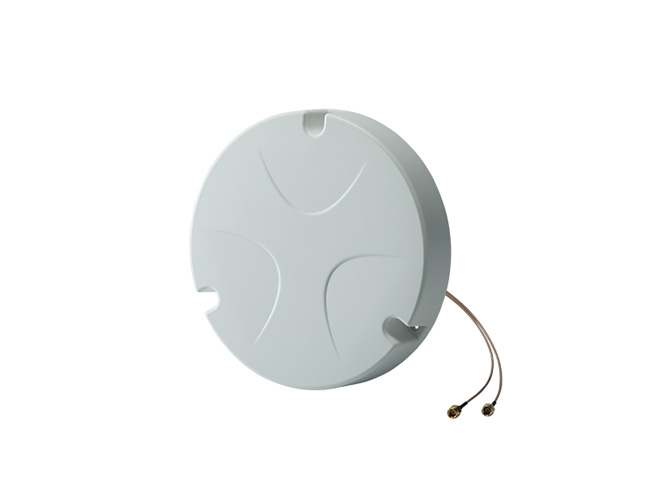

MAT-WDB-CA-RM-2-0205 - MIMO 2x2, 2.4/5 GHz, dual-band ceiling antenna, 2/5 dBi, RP-SMA-type (male)
by MOXA
|
|
|
|
- RP-SMA-type (male) connector
- Lightweight
- Easy to mount on the ceiling
- -40 to 75°C operating temperature range
|
|
|
MIMO 2x2, 2.4/5 GHz, dual-band ceiling antenna, 2/5 dBi, RP-SMA-type (male)
| • Antenna Characteristics |
| Frequency |
2.4 to 2.5 or 4.9 to 5.9 GHz |
| Antenna Type |
Omni-directional |
| Typical Antenna Gain |
2/5 dBi |
| Connector |
N-type (male) |
| Impedance |
50 ohms |
| Polarization |
Linear, vertical, or horizontal |
| V.S.W.R. |
1.92:1 max. |
| Power Handling |
10 W max. |
| • Physical Characteristics |
| Cable Type |
RG178 |
| Cable Length |
250 mm |
| Weight |
115 g |
| Dimensions |
Diameter: 210.9 mm Height: 37 mm |
| Radome Color |
White |
| Radome Material |
ABS |
| • Environmental Limits |
| Operating Temperature |
-40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity |
5 to 95% (30°C, non-condensing) |
|
|
