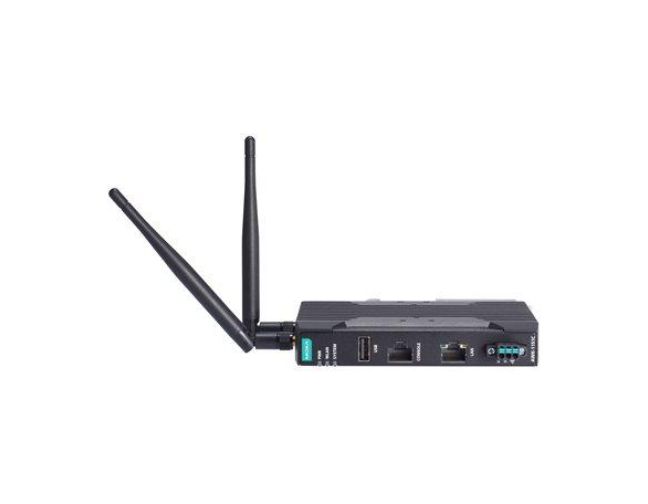

AWK-1151C-US-T - 802.11ac Wireless Client, US band, -40 to 75°C
by MOXA

The AWK-1151C Series industrial wireless client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology for data rates of up to 867 Mbps. The AWK-1151C is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The compact form factor with DIN-rail or optional wall mounting easily fits into industrial machines or control cabinets, offering reliable wireless connectivity. The AWK-1151C can operate on the 2.4 or 5 GHz band and is backwards-compatible with existing 802.11a-b-g-n deployments to future-proof your wireless investments.

WLAN Interface

• WLAN Standards

  • 2.4 GHz: 802.11b-g-n with 256 QAM support
    5 GHz: 802.11a-n-ac Wave 2 with 256 QAM support


• Frequency Band for US (20 MHz operating channels)

  • 5.745 to 5.825 GHz (5 channels)
    2.412 to 2.462 GHz (11 channels)
    5.180 to 5.240 GHz (4 channels)
    5.500 to 5.700 GHz (11 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.
    5.260 to 5.240 GHz (4 channels) DFS (Dynamic Frequency Selection) channel support: In AP mode, when a radar signal is detected, the device will automatically switch to another channel. However, according to regulations, after switching channels, a 60-second availability check period is required before starting the service.

• Wireless Security

  • WEP encryption (64-bit and 128-bit)
    WPA-WPA2-WPA3-Enterprise (IEEE 802.1X-RADIUS, TKIP, AES)
    WPA-WPA2-WPA3-Personal

• Transmission Rate

  • 2.4 GHz:
    802.11b: 1 to 11 Mbps
    802.11g: 6 to 54 Mbps
    802.11n: 6.5 to 400 Mbps

    5 GHz:
    802.11a: 6 to 54 Mbps
    802.11n: 6.5 to 300 Mbps
    802.11ac: 6.5 to 867 Mbps

• Transmitter Power for 802.11a (Dual Chain)

  • 25±1.5 dBm @ 6 Mbps
    23±1.5 dBm @ 54 Mbps

• Transmitter Power for 802.11n (5 GHz, Dual Chain)

  • 25±1.5 dBm @ MCS0 20 MHz
    22±1.5 dBm @ MCS7 20 MHz
    24±1.5 dBm @ MCS0 40 MHz
    22±1.5 dBm @ MCS7 40 MHz

• Transmitter Power for 802.11ac (Dual Chain)

  • 25±1.5 dBm @ MCS0 20 MHz
    22±1.5 dBm @ MCS8 20 MHz
    24±1.5 dBm @ MCS0 40 MHz
    21±1.5 dBm @ MCS9 40 MHz
    23±1.5 dBm @ MCS0 80 MHz
    20±1.5 dBm @ MCS9 80 MHz

• Transmitter Power for 802.11b (Dual Chain)

  • 29±1.5 dBm @ 1 Mbps
    29±1.5 dBm @ 11 Mbps

• Transmitter Power for 802.11g (Dual Chain)

  • 29±1.5 dBm @ 6 Mbps
    26±1.5 dBm @ 54 Mbps

• Transmitter Power for 802.11n (2.4 GHz, Dual Chain)

  • 28±1.5 dBm @ MCS0 20 MHz
    25±1.5 dBm @ MCS7 20 MHz
    28±1.5 dBm @ MCS0 40 MHz
    25±1.5 dBm @ MCS7 40 MHz

• Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

  • Typ. -89 @ 6 Mbps
    Typ. -72 @ 54 Mbps

• Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

  • Typ. -89 dBm @ MCS0 20 MHz
    Typ. -69 dBm @ MCS7 20 MHz
    Typ. -85 dBm @ MCS0 40 MHz
    Typ. -66 dBm @ MCS7 40 MHz

• Receiver Sensitivity for 802.11ac

  • Typ. -88 dBm @ MCS0 20 MHz
    Typ. -65 dBm @ MCS8 20 MHz
    Typ. -85 dBm @ MCS0 40 MHz
    Typ. -60 dBm @ MCS9 40 MHz
    Typ. -81 dBm @ MCS0 80 MHz
    Typ. -55 dBm @ MCS9 80 MHz

• Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

  • Typ. -96 dBm @ 1 Mbps
    Typ. -88 dBm @ 11 Mbps

• Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

  • Typ. -90 dBm @ 6 Mbps
    Typ. -74 dBm @ 54 Mbps

• Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

  • Typ. -90 dBm @ MCS0 20 MHz
    Typ. -70 dBm @ MCS7 20 MHz
    Typ. -87 dBm @ MCS0 40 MHz
    Typ. -69 dBm @ MCS7 40 MHz

• WLAN Operation Mode

  • Client, Client-Router, Slave, Sniffer

• Antenna

  • External, 2-2 dBi, Omni-directional

• Antenna Connectors

  • 2 RP-SMA female

Ethernet Interface

• Standards

  • IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3af for PoE
    IEEE 802.3at for PoE
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1X for authentication

• 10-100-1000BaseT(X) Ports (RJ45 connector)

  • 1

Ethernet Software Features

• Management

  • DHCP Client, DNS, HTTP, IPv4, LLDP, SMTP, SNMPv1-v2c-v3, Syslog, TCP-IP, Telnet, UDP, VLAN, MXconfig

• Routing

  • Port forwarding, Static Route, NAT

• Security

  • HTTPS-SSL, RADIUS, SSH

• Time Management

  • SNTP Client

Firewall

• Filter

  • ICMP, MAC address, IP protocol, Port-based

Serial Interface

• Console Port

  • RS-232, 8-pin RJ45

USB Interface

• Storage Port

  • USB Type A

LED Interface

• LED Indicators

  • PWR, WLAN, SYSTEM

Input-Output Interface

• Buttons

  • Reset button

Physical Characteristics

• Housing

  • Metal

• IP Rating

  • IP30

• Dimensions

  • 100 x 130 x 22 mm (3.94 x 5.12 x 0.87 in)

• Weight

  • 436 g (0.96 lb)

• Installation

  • DIN-rail mounting, Wall mounting (with optional kit)

Power Parameters

• Input Current

  • 9 to 30 VDC, 1.57 to 0.47 A

• Input Voltage

  • 9 to 30 VDC

• Power Connector

  • 1 removable 3-contact terminal block(s)

• Power Consumption

  • 14 W (max.)

Environmental Limits

• Operating Temperature

  • -40 to 75C (-40 to 167F)

• Storage Temperature (package included)

  • -40 to 85C (-40 to 185F)

• Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Standards and Certifications

• EMC

  • EN 61000-6-2--6-4, EN 55032-35

• EMI

  • CISPR 32, FCC Part 15B Class A

• EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V-m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V-m
    IEC 61000-4-8 PFMF: 30 A-m

• Road Vehicles

  • E mark E1

• Safety

  • IEC 60950-1, IEC 62368-1, UL 62368-1

• Vibration

  • IEC 60068-2-6

• Radio

  • EN 300 328, EN 301 489-1-17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, IC

MTBF

• Time

  • 1,144,888 hrs

• Standards

  • Telcordia SR332

Warranty

• Warranty Period

  • 5 years

• Details

  • See www.moxa.com-warranty
