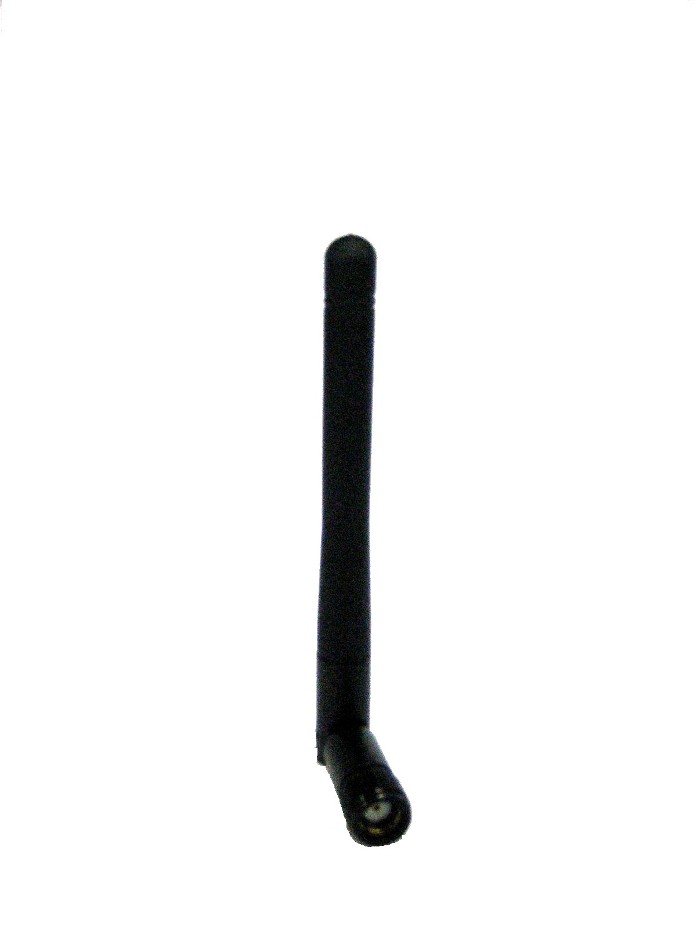

ANT-WDB-ARM-02 - 2.4/5.5GHz 2dBi dual-band antenna, RP-SMA(male) connector
by MOXA
|
|
|
|
- Small size for compact fit
- Lightweight for portable deployment
- Tilt and swivel design
- Flexible installation
- RP-SMA connector (male) supported
|
|
|
2.4/5.5GHz 2dBi dual-band antenna, RP-SMA(male) connector
| Antenna Characteristics |
| Frequency |
2.4 to 2.5 and 5.2 to 5.8GHz |
| Antenna Type |
Omni-directional |
| Typical Antenna Gain |
2 dBi at 2.4 GHz, 2 dBi at 5 GHz |
| Connector |
RP-SMA (male) |
| Impedance |
50 ohms |
| Polarization |
Linear, vertical |
| HPBW/horizontal |
360° |
| HPBW/vertical |
80° |
| V.S.W.R. |
2.0 max |
| • Physical Characteristics |
| Weight |
10 g |
| Dimensions |
Length=108 mm |
| Radome Color |
Black |
| Radome Material |
Plastic |
| Installation |
Straight mount |
| • Environmental Limits |
| Operating Temperature |
-40 to 80°C (-40 to 176°F) |
| Storage Temperature |
-40 to 80°C (-40 to 176°F) |
| Ambient Relative Humidity |
5 to 95% (30°C, non-condensing) |
|
|
