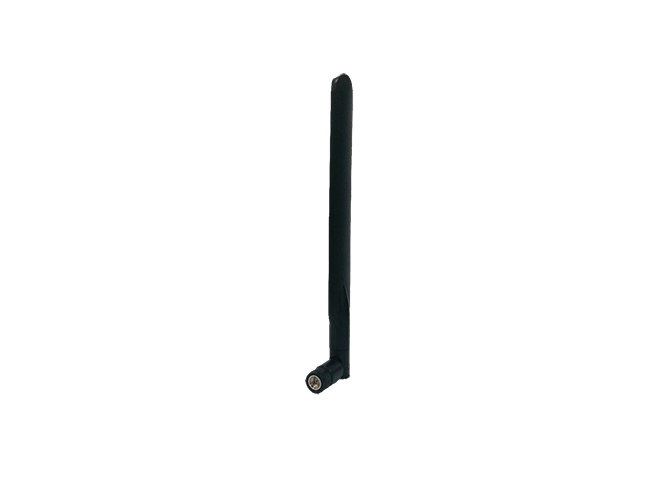

ANT-LTEUS-OSM-02 - 698~960/1710~2700 MHz, 1/4? omni-directional antenna, 1.5 dBi, SMA (male) by MOXA
|
|
|
- Small size for compact fit
- Lightweight for portable deployment
- Tilt and swivel design
- Flexible installation
- SMA connector (male) supported
|
|
|
GSM/GPRS/EDGE/UMTS/HSPA/LTE, 1 dBi, omni-directional, rubber duck antenna
• Antenna Characteristics |
Frequency |
700/850/900/1700/1900/2600 MHz |
Antenna Type |
Omni-directional |
Typical Antenna Gain |
1 dBi @ 698 to 960 MHz 2 dBi @ 1710 to 1990 MHz 2 dBi @ 2300 to 2400 MHz 2 dBi @ 2500 to 2700 MHz |
Connector |
SMA (male) |
Impedance |
50 ohms |
Polarization |
Linear, vertical |
HPBW/horizontal |
360° |
V.S.W.R. |
< 3 |
• Physical Characteristics |
Weight |
26 g |
Length |
205 mm |
Radome Color |
Black |
Radome Material |
Plastic |
Installation |
Straight mount |
• Environmental Limits |
Operating Temperature |
-30 to 75°C (-22 to 167°F) |
Storage Temperature |
-30 to 75°C (-22 to 167°F) |
Ambient Relative Humidity |
5 to 95% (30°C, non-condensing) |
|
|
