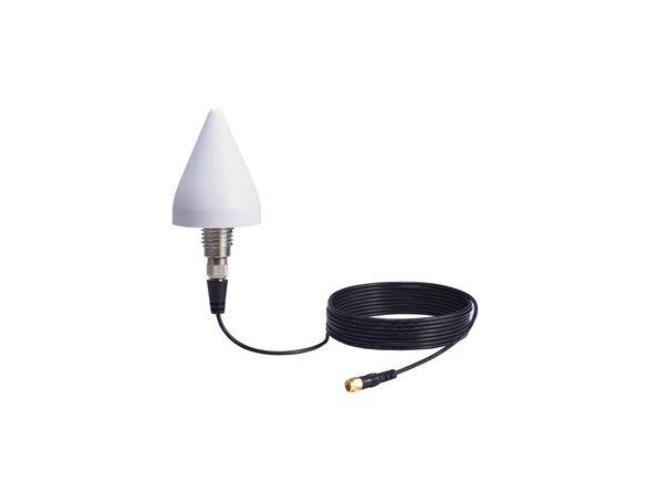

The ANT-GNSS-CSM-02-3m Series is an omnidirectional cone-shaped
antenna suitable for GNSS applications. The antenna provides a gain
of 2 dBic and is designed to operate in temperatures ranging from
-40 to 85C.
ANT-GNSS-CSM-02-3m.html
Antenna Characteristics
-
Frequency
-
Antenna Type
-
Typical Antenna Gain
- Without low noise amplifier:
-0.5 dBic @ 1561 MHz (BDS)
2 dBic @ 1575.42 MHz (GPS)
0.6 dBic @ 1598 to 1606 MHz (GLONASS)\xa0
With low noise amplifier:
35 dB
-
Connector
-
Impedance
-
Polarization
-
V.S.W.R.
Physical Characteristics
-
Weight
- Without cable and connector: 125 g (0.28 lb)
-
Dimensions
-
Radome Color
-
Radome Material
-
Installation
-
Cable
-
Cable Length
-
IP Rating
Environmental Limits
-
Operating Temperature
-
Storage Temperature (package included)
-
Ambient Relative Humidity
- 5 to 95% (30C, non-condensing)
