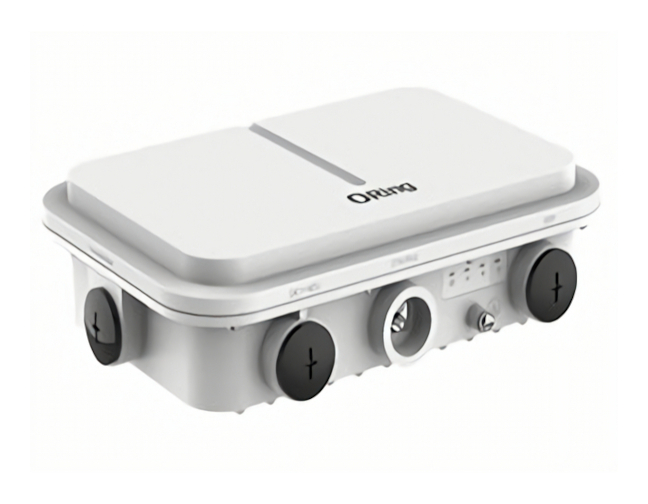

ORing IGAP-W99110GP+is a high-performance Wi-Fi 6 (IEEE802.11ax) industrial outdoor AP. The IGAP-W99110GP+provide concurrent dual-band dual-radio with up to 2.4Gbps access rate, it offers 4 spatial streams. The interface includes one SFP port and one Gigabit Ethernet port with PoE/ local power supply. Taking the wireless network security, RF control, mobile access, QoS, seamless roaming and other important factors into account. By the technologies implemented in IEEE802.11ax, such as OFDMA, BSS Color and MU-MIMO, it can reduce the network latency, spatial reuse and improve the network efficiency. IGAP-W99110GP+adopts the IP68 protection design for the enclosure, which is suitable for application in indoor and outdoor environments. It can withstand extreme weather and other environmental conditions. Equipped with built-in directional antenna, IGAP-W99110GP+can achieve the Wi-Fi coverage in vast majority of the scenarios and greatly reduce the difficulty of installation and maintenance. Multi-hop and point-to-multipoint bridge features are supported to further enhance the deployment flexibility.
IGAP-W99110GP+.html
Physical ports
10/100/1000Base-T(X) ports in RJ45
1
Console
1
Reset
Reset AP/Factory default by press time
LED Indicators
RSSI Indicator
Green 1 Solid : -50dBm
Power
Power consumption (Typ.)
12.95W
Surge Protection
Common mode +/-9kV
Power Input
PoE (802.3af / 802.3at) or 44~57VDC power supply
WLAN Interface
Operating Mode
AP/Client
Frequency Band
2.412~2.472 GHz 5.180~5.240 GHz, 5.745~5.825 GHz
Transmission Rate
Up to 0.575Gbps@2.4G Up to 1.2Gbps@5G Up to 2.4Gbps per AP 2.4G+5G is recommended with 1.775Gbps access rate
Transmit Power
28dBm (Note: The actual transmit power varies according to different countries and regions)
