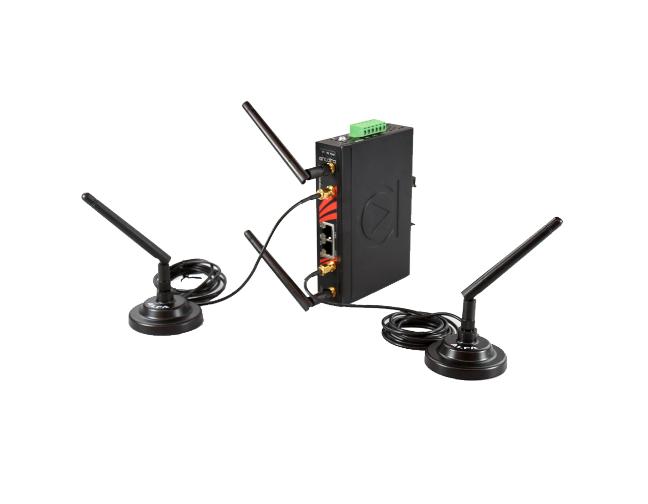

Antaira ARS-7231-AC-T - Industrial Dual Radio 802.11a/b/g/n/ac WiFi Access Point/Client/Bridge/Repeater with Router Capabilities by ANTAIRA
|
|
|
ARS-7231-AC-T_SUMMARY.html
Features
-
Industrial 2x2 MIMO
-
Qualcomm Atheros QCA9892
-
Supports IEEE 802.11 a/b/g/n/ac
-
Supports 2*10/100Base-TX WAN/LAN port
-
Tx Power 21 dB for 2.4GHz
-
Tx Power 18 bB for 5GHz
-
WPA, WPA2, WPA3, WEP, TKIP, AES
-
Power Input: 9~48VDC in 4-pin terminal block
-
Reverse Polarity Protection
-
IP30 Protection
-
DIN-Rail or Wall Mountable
-
Operating Temperature Range: -35° to 70°C
|
|
|
ARS-7231-AC-T_DESCRIPTION.html
ARS-7231-AC-T is a dual radio industrial 802.11a/b/g/n/ac wireless LAN access point with added router capabilities. Embedded with the Qualcomm/Atheros QCA9892 chipset, it boasts network robustness, stability, and a wide network coverage with a very low voltage input of 9V. Based on IEEE 802.11 a/b/g/n/ac, the access point supports high-speed data transmission of up to 867Mbps.
The ARS-7231-AC series is capable of operating in different modes, which makes it suitable for a wide variety of wireless applications including long-distance deployments. The unit also allows the user to position the wireless antennas in a better signal-broadcasting location for improved wireless coverage and signal strength or simply in a more convenient location.
ARS-7231-AC-T.html
Protocols |
IP, TCP, UDP, ARP, BOOTP, ICMP, HTTP, HTTPS, DNS Proxy, NTP, RADIUS, Dynamic DNS, SNMP |
IEEE |
IEEE 802.11 b/g/n/ac IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet |
WLAN Operation Mode |
AP/Client/Bridge/Repeater |
Encryption Security |
WPA, WPA2, WPA3, WEP, TKIP, AES |
Ethernet Port |
2*10/100Tx |
WLAN |
Dual Radio |
Antenna |
4*External Antenna |
LED Indicators |
Power, Fault, Wi-Fi Signal, Link, Activity |
Housing |
Metal, IP30 Protection |
Dimensions |
26 x 95 x 75mm (W*H*D) |
Weight |
Unit: 0.60 lb. Shipping: 1.0 lb. |
Mounting |
DIN-Rail, Wall Mounting |
Input Voltage |
9~48VDC, Redundant Input |
Power Connection |
6-Pin Terminal Block |
Reverse Polarity Protection |
Present |
Overload Current Protection |
Present |
Power Consumption |
8 Watts |
Operating Temperature |
EOT: -35°C to 70°C |
Storage Temperature |
-40°C ~ 90°C |
Ambient Relative Humidity |
5 to 95%, (non-condensing) |
EMI |
FCC Part 15 Subpart B CE EN 55032 EN301489-1/-17 FCC Part 15 Subpart B CNS13438 AS/NZS
CSIPR 32 |
EMS |
CE EN 55024 IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5
(Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) IEC61000-4-11 |
Free Fall |
IEC60068-2-32 |
Shock |
IEC60068-2-27 |
Vibration |
IEC60068-2-6 |
Green |
RoHS Compliant |
Certifications |
FCC, CE |
|
|
