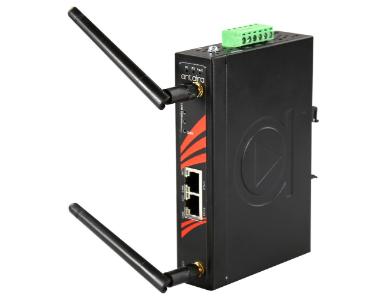

Antaira ARS-7131-AC - Industrial 802.11a/b/g/n/ac WiFi Access Point / Client / Bridge / Repeater with Router Capabilities
by ANTAIRA
|
|
|
|
ARS-7131-AC_SUMMARY.html
Features
-
Industrial 2x2 MIMO
-
Qualcomm Atheros QCA9892
-
Supports IEEE 802.11 a/b/g/n/ac
-
Supports 2*10/100Base-TX WAN/LAN port
-
Tx Power 21 dB for 2.4GHz
-
Tx Power 18 bB for 5GHz
-
WPA, WPA2, WPA3, WEP, TKIP, AES
-
Power Input: 9~48VDC in 4-pin terminal block
-
Reverse Polarity Protection
-
IP30 Protection
-
DIN-Rail or Wall Mountable
-
Operating Temperature Range - STD: 0° to 60°C
|
|
|
ARS-7131-AC_DESCRIPTION.html
ARS-7131-AC - is a single radio industrial 802.11a/b/g/n/ac wireless
LAN access point with added router capabilities. With the Atheros XSPAN family chipset, it boasts network robustness, stability, and a wide network coverage with a very low voltage input of 9V. Based on IEEE 802.11 a/b/g/n/ac, the access point supports high-speed data transmission of up to 867Mbps.
The ARS-7131-AC industrial router series is capable of operating in different modes, which makes it suitable for a wide variety of wireless applications including long-distance deployments. The industrial WiFi router also allows the user to position the wireless antennas in a better signal-broadcasting location for improved wireless coverage and signal strength or simply in a more convenient location.
ARS-7131-AC.html
| Certification |
FCC |
| Dimensions |
30 x 140 x 95 mm (1.18 x 5.51 x 3.74 inches) |
| EMI |
FCC Part 15 Subpart B
CE EN 55032,
EN301489-1/-17
FCC Part 15 subpart B
CNS13438
AS/NZS
CSIPR 32 |
| Weight |
Unit: 1.0 lbs.
Shipping: 1.5 lbs. |
| EMS |
CE EN 55024
IEC61000-4-2 (ESD),
IEC61000-4-3 (RS),
IEC61000-4-4 (EFT),
IEC61000-4-5
(Surge),
IEC61000-4-6 (CS),
IEC61000-4-8 (Magnetic Field)
IEC61000-4-11 |
| RF |
FCC Part 15 Subpart C/E
CE-RED
EN300328
EN301893
EN301489-1/-17
LP0002
AS/NZS 4268
|
| Green |
RoHS Compliant |
| Safety |
EN60950-1
CNS14336-1 |
| Ambient Relative Humidity |
10% to 90%, (non-condensing) |
| Ethernet Port |
2*10/100BaseT(X), auto negotiation speed, Full/Half Duplex Mode |
| RF Radiation Exposure |
EN62311
FCC Part 2.1091 |
| Isolation Protection |
Built-in 1.5KV Magnetic Isolation |
| Protocols |
IP, TCP, UDP, ARP, BOOTP, ICMP, HTTP, HTTPS, DNS Proxy, NTP, RADIUS, Dynamic DNS, SNMP |
| Antenna |
Two External SMA Antenna |
| Frequency Range |
IEEE 802.11b/g/n (2.4GHz) 2.412~2.462 GHz
IEEE 802.11a/ac (5GHz) 4.920~5.825 GHz |
| Transmit Power |
21dB 2.4GHz
18dB 5GHz |
| Encryption Security |
WPA, WPA2, WPA3, WEP, TKIP, AES |
| Power Consumption |
8 Watts |
| Power Input |
9 - 48 VDC in 6 pin Terminal Block, Dual Power |
| Reverse Polarity Power Protection |
Present |
| Operating Temperature |
-40°C to 75°C (-40 to 167°F) |
| Operating Humidity |
5% to 95% (Non-condensing) |
| Casing Enclosure |
IP 30 Protection |
| Connector |
RJ45 |
|
|
