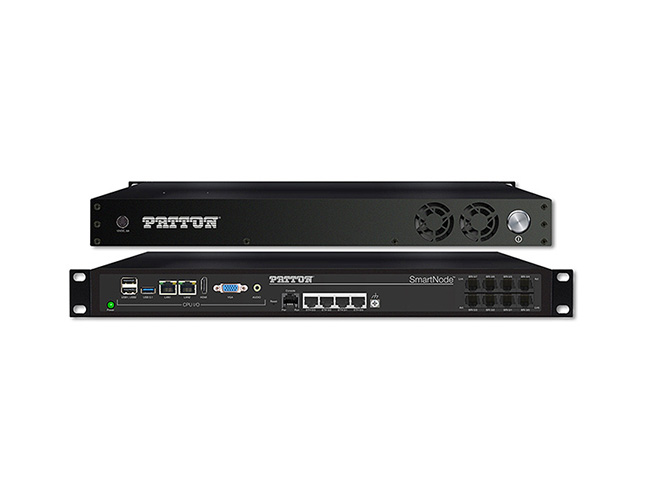

SNOGA-L/1E30VHP/EUI - SmartNode Open Gateway Appliance - Large, 1 T1/E1 PRI VoIP GW-Router, 2x GigEthernet, 30 VoIP channels;
by PATTON
|
|
|
|
- Integrated miniITX PC Board:
- Standard platform
- Flexible options
- Supports Any Operating System—Windows or any flavor of Linux.
- Fully Customizable—Useful for a variety of communication software including IP-PBX, business-phone-system, unified-communications
router, session border controller, call-recording, or call-accounting.
- Monitoring and Management—Leverage the Patton EMS system together with your preferred software on the SmartNode Open Gateway Appliance to be monitored and managed.
- Provisioning—Using the Patton Redirection Service, the Open Gateway Appliance can be provisioned with zero touch at the customer site.
- Fits Your Network:
- BYOP (Bring your own phone)—Choose your own hardware, whether it is IP phones or softphones, computers, tablet computers, mobile phones; no vendor lock-in.
- Keep Your Existing Equipment—Built-in gateway connects existing analog/ISDN equipment.
- SIP Trunks or PSTN—Save on monthly call costs using SIP Trunks or receive and make calls via the standard PSTN.
- Why SmartNode™?
- Patton Quality
- Made in the USA
- Unrivaled Customer Support
- FREE Support and Upgrades
|
|
|
The Patton Model SNOGA-L-1E30VHP-EUI enables industry peers or integrators to simply buy the unit and install their software of choice, or partner with Patton to create a custom OEM solution for any number of applications. With the ability to run any IPPBX, IVR solution, router, SBC, call recorder, or call accounting software, alongside any one of Patton’s robust Gateways, the SNOGA opens the door to endless possibilities and cus- tomer satisfaction, every time.
The Open Gateway Appliance is a convenient “one box” IP-PBX, unified communications, or business phones system solution. With the built-in VoIP Gateway, the Open Gateway Appliance eliminates interoperability obstacles for companies that want to keep their legacy equipment including PBXs, phones, fax equipment and POTS lines. Configuration options include a range of analog FXS/FXO and/or ISDN BRI/PRI gateways coupled with the industry standard miniITX PC board.
| Capacity |
- 64 calls with Transcoding
- 128 calls with RTP Relay
- 20 cps
|
| Gateway Capacity |
- Up to 120 (PRI), 16 (BRI), 8 (FXS) simultaneous VoIP or T.38 fax calls (depending on the model).
|
| BRI Voice Connectivity |
- 2/4/8 BRI So ports, RJ-45
- NT/TE configurable per port
- Built-in line power on each port (total 4W)
- DSS1, Q.921, Q.931. NTT-64
- Point-point and point-to-multipoint
- Optional QSIG support*
|
| FXS/FXO Voice Connectivity |
- Up to 4 FXS and FXO ports
- 2-wire Loopstart on RJ-11/12
- Short haul loop 1.1km @3REN
- EuroPOTS (ETSI EG201188)
- Programmable AC impedance, feeding, ring and on-hook voltage
- Caller-ID FSK and ITUV.23/Bell 202 generation
- FSK & stuttering dial tone MWI
|
| PRI Voice Connectivity |
- 1 or 4 T1/E1 PRI port(s) (NT/TE)
- Signaling support (ISDN DSS-1, NI-2, Q.SIG, CAS Robbed bit loop and ground start, E&M, immediate, wink, double wink)
- ISDN AOC/ECT
- ISDN speech, audio & data (Fax Gr 4, UDI 64, RDI64)
- ISDN supplementary services
- CAS protocols: RBS (Loop start, ground start, E&M wink, intermediate, double-wink) and R2/MFC-R2 (Q.400–Q.490 and Configurable country profiles)
|
| LAN/WAN Connectivity |
- 2 x 10/100/1000 TX Ethernet ports or 4 x 10/100Base-T Ethernet ports (depending on the model)
- Auto-MDI-X
- DHCP Client
- PPPoE Client (multi-session)
- IP Multi-Netting access control lists
- DMZ port
|
| Voice Processing |
- Codec G.711 a-law/mu-law, G.723, G.729ab, G.726, G727, T.38 fax relay (9.6 k, 14.4 k)
- G.711 transparent fax and bypass
- Transcoding for up to 12/15 channels (depending on model)
|
| Call Routing and Services |
- Regular expression call routing and manipulation
- Number blocking
- Short-dialing
- Digit collection, distribution and hunt groups
|
| IP Quality of Service |
- Voice priority
- Traffic management
- IEEE 802.1p, TOS, DiffServ labeling
- IEEE 802.1Q, VLAN tag insertion/deletion 4,096
|
| Management |
- Web/HTTP, CLI with local console & remote Telnet access
- TFTP configuration & firmware loading
- SNMP MIB II and product MIB
- Secure auto provisioning for firmware & unit/subscriber configuration
- Built-in diagnostic tools (trace, debug, call generator)
|
| Operating Environment |
- Operating Temperature: 32 to 104° F (0 to 40°C)
- Operating Humidity: up to 90%, non-condensing
|
| Dimensions |
- 19W x 1.7H x 12D in. (48.3W x 4.4H x 30.5L cm)
- Rack mountable chassis
|
| Compliance |
- EMC: EN55022 and EN5502
- Safety: EN 60950
- CE
- FCC Part 15 Class A; Part 68; CS-03
|
|
|
