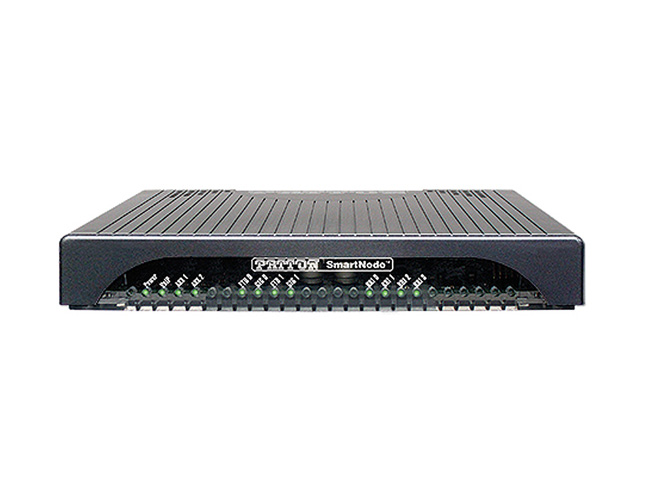

SN5531/8BIS16VRHPAVB/EUI - SmartNode E-SBC, 8 BRI w/ Fallback Relay, 16 VoIP Calls or 4 SIP-SIP Calls (SIP b2b UA) upgradeable (
by PATTON
|
|
|
|
- 2/4/8 Ports Quality ISDN VoIP—2, 4 or 8 ISDN BRI S0 ports. Up to 16 G.722 or up to 16 T.38 or G.711 calls simultaneously. Using SRTP, up to 10 simultaneous calls.
- Full Telephony Features—SessionRouter™ allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, 3-way conferencing (Roadmap) and much more.
- SIP Registrar - License is included in ALL eSBC products.
- Management & Provisioning—Web-based management, WEB Wizard, SNMPv3, command line interface, auto-provisioning separate config domain support, secure provisioning for configuration and software upgrades.
- Complete Access Routing—Two 10/100/1000 Ethernet ports with auto MDI-X. Ethernet Layer 2 switching and bridging. Access router with NAT, Policy Based Routing, Stateful Firewall, PPPoE, DHCP, DynDNS.
- Access link redundancy —Through USB port, using 3G/4G Cellular Modem module
- WAN Broadband Access — VDSL 2 & ADSL2+ and G.SHDSL-EFM/ATM Broadband WAN interface.
- Full VoIP protocol support—SIPv2, SIP v2 over TLS, ISDN, DSS1, QSIG***, T.38, G.722 HD voice, RTP Security with SRTP, fax and modem bypass, DTMF relay. SIP to SIP transcoding for up to 4 calls.
- Outstanding Interoperability—Interoperable for voice and T.38 fax with leading SIP service providers, softswitch vendors, and Asterisk™ IP-PBX.
- High Precision Clock (HP) Option—DECT PBX interoperability and improved fax performance with Stratum 3 CO quality clock (HP)**.
- Supported by SmartNode™ Redirection Service—A free service enabling zero-touch mass deployments for Service Providers and Distributors with auto-provisioning servers (Learn More).
- Why SmartNode™?
- Patton Quality
- Made in the USA
- Unrivalled Customer Support
- FREE Support and Upgrades
|
|
|
The Patton Model SN5531-8BIS16VRHPAVB-EUI is the perfect choice for All-IP applications where legacy, non-replaceable ISDN equipment has to be integrated in to an UCC environment. For pure All-IP Networks, the SmartNode acts as a service termination point towards the enterprise with an integrated VDSL / ADSL WAN interface.
With the separate config domain feature, the SN5530 will be the service demarcation point for SIP Trunk service providers, where the local administrator can be limited to only modify configuration settings facing the LAN IP PBX.
The SN5530 acts as VoIP Gateway, eSBC, Access Router and QoS CPE all in one device.
It can also undertake Network assessment and monitoring at the customer premise by utilizing Patton Cloud network monitoring
to prevent, reduce and resolve network and voice quality problems.
| Voice Signaling |
SIPv2
SIPv2 over TLS SIPv2 over IPv6 SIP call transfer, redirect
Overlap or en-bloc dialing
DTMF in-band, out-of-band
Configurable tones
|
| Call Routing & Services |
Regular expression number matching
Regular expression number manipulation
Least Cost Routing
Number blocking
Short-Dialing
Digit collection
Distribution- and Hunt-Groups
|
| ISDN |
2/4/8 BRI S0 ports**, RJ-45
NT/TE configurable per port
Built-in line power on each port (total 4W)
DSS1, Q.921, Q.931. NTT-64
HP** High Precision Clock Stratum 3 CO
Point-point and point-multipoint
Lifeline Bypass Relay***
Optional QSIG support*** |
| Voice Processing |
G.722
G.722.2
G.711m/A-law
G.723.1 (6.4 kbps)
G.729, 729a, 729ab (8 kbps)
G.726 (16, 24, 32, 40 kbps) AMR-NB (4.75, 5.15, 5.9, 6.7, 7.4, 7.95, 10.2, 12.2 kbps) iLBC at 13.33 kbps (SIP-SIP only)
G.168-2004 echo cancellation (128ms)
4/8/16 simultaneous low-bandwidth voice or T.38 fax calls
2/5/10 HD calls with SRTP 2/4/8 SIP to SIP transcoding calls Transparent ISDN data
Silence suppression and comfort noise
Adaptive and configurable dejitter buffer
Configurable packet length SIP Registrar |
SIP Session Capacity
|
4 SIP Sessions, license upgradeable up to 200****
|
| Broadband Access |
G.SHDSL 4 or 8 wire:
ATM: G.SHDSL ITU-T G991.2, Annex A, B, F, G • Up to 11.4 Mbps • PPPoE • PPPoA, IPoA, 8PVCs, each UBR, CBR or VBR-rt selectable • I.610 OAM F4/F5 support • G.994.1 (G.hs)
EFM mode compliant to IEEE 802.3 G.998.2 • PPP over Ethernet (RFC2516) • Support of OAM PDU information and functionality (ITU-T Y.1731) • OAMPDU event notification, variable request, variable response, and loopback control
ADSL/VDSL:
VDSL 2, G.hs, G.Vectoring, up to profile 30a support.
ADSL2, ADSL2+, Annex, A, L, M** or B, J**. IPoA, IPoEoA, PPPoA, PPPoEoA (RFC2364, RFC2516)
|
| IP Quality of Service |
Voice priority, DownStreamQoS™
Traffic Management, shaping policing
IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling |
| Connectivity |
Two 10/100/1000Base-T Ethernet ports Optional WAN interface: ADSL-VDSL, G.SHDSL.bis USB 2.0 host port for USB Modem Failover
Auto-MDIX
DHCP Client
PPPoE Client (multi-session)
IP Multi-Netting, VLAN, Secondary IP
IPv4, Basic IPv6
ICMP
Dynamic and static NAT and NAPT
ACL, Stateful Firewall
DNS, DynDNS
DHCP Server
SNTP Client |
| Management |
Patton Cloud Orchestrated
Customizable WebWizard, Web-based GUI, CLI Telnet and HTTP access
Zero Touch Provisioning TR-069, TFTP, HTTP, HTTPS configuration up- and download
TR-069, TFTP, HTTP, HTTPS firmware upgrade, Dual Image
SNMPv3 agent - MIB II and private MIB
Separate config domain (LAN side config and WAN side config)
Built-in diagnostic tools
Secure Auto-Provisioning with built in root CA |
| Power Consumption |
< 10W |
| Mounting |
Desktop/Wall-mount plastic chassis
Desktop/Wall/Rack-mount metal chassis (8BIS model only) |
Dimensions & Weight
|
Plastic enclosure (2-4BIS models):
Dimensions: 8.2w x 1.3h x 6.5d inch (20.82w x 3.302h x 16.51d cm)
Weight: Boxed: 2.15lbs (975g) Un-boxed: 0.90lbs (408g)
Metal enclosure (8BIS model only):
Dimensions: 12.11w x 1.77h x 6.09d inch (30.76w x 4.50h x 15.46d cm)
Weight: Boxed: 3.35lbs (1519.5g) Un-boxed: 1.65lbs (748g)
|
| Environment |
Operating temperature: 32–104°F (0–40°C)
Operating humidity: up to 90%, non-condensing
|
| Compliance |
FCC Part 15 Class A (US EMC)
CE per RTTE 99/5/EC (EMC and LVD)
|
| Safety |
EN60950
TBR-3 (ISDN BRI/So) |
|
|
