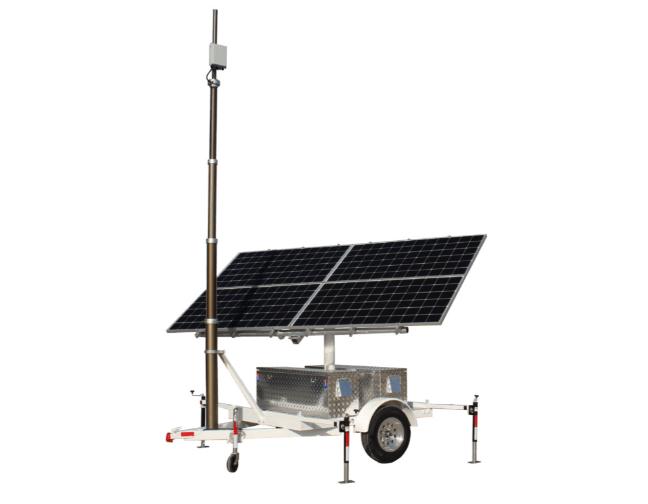

RPMS24-1440-Beast - The RPMS MobileSolarPro
® Series outdoor mobile
power system is designed for temporary power applications like Construction Sites, Concerts and Festivals, Emergency
Power,
Agriculture and other applications requiring temporary security and lighting. The rugged mobile solar trailer can
support up to 160W continuous power draw with 6hrs peak sun per day.
The two, high quality, 360W solar panels have a
25year power output guarantee. The panels are mounted to a heavy duty, fully adjustable galvanized solar mount. Tilt
range is 10-65
degrees. Horizontal rotation is 360 degrees, so trailer orientation is not critical as in some other competitive
designs.
The temperature compensated MPPT Solar Controller
boasts a 99% conversion efficiency. It handles up to 60A solar input and provides up to 30A
load output.
The entire MobileSolarPro®system is capable of remote monitoring
and control via the built-in web enabled remote monitor system. Monitor Solar Voltage &
Current, Battery Voltage & Current, Load Current, Temperature. Disconnect Load Power. Email Alerts and
Manual/Automatic Reboot. There are 2 spare 10A relays, 1 spare current measuring channel and 2 spare voltage
measuring channels for customer expansion. For instance, a customer could use one of the spare relay channels to
automatically turn on a generator based on programmable rules.
There is a convenient AC voltage input port to be
able to charge batteries from AC or solar. AC can come from grid power or a generator.
At the top of the 18ft aluminum pneumatic extension
mast there is a die cast aluminum junction box which houses a 5 port Gigabit Layer 2 PoE Switch with a versatile PoE
output scheme.
Port 1 = 60W High PoE, Port 2-4 = 802.3at PoE+, Port 5 = 24V Passive PoE. There is regulated 56VDC and unregulated
24VDC available at the top of mast. In addition, a CAT5 cable connects the battery enclosure to the top of mast
switch.
The locking diamond plate
aluminum enclosure includes a thermostatically controlled fan which turns on automatically when the temperature
exceeds 45°C. There is room for an additional enclosure if needed for additional battery capacity or tool
storage.
The 1440Ah battery array is organized in a
24VDC configuration using Non-Spillable Valve Regulated Sealed Lead Acid Advance Glass Matt (AGM) batteries which
have excellent temperature and deep discharge performance. Expected battery life exceeds 5years.
The MobileSolarPro®comes completely
assembled for quick deployment. The trailer is constructed of powder coat painted welded tubular steel instead of
typical C channel bolt together trailer construction. This provides superb structural integrity and allows for
completely protected and secured wiring inside the tubing. A solar cover is included for protection of panels during
transport.
