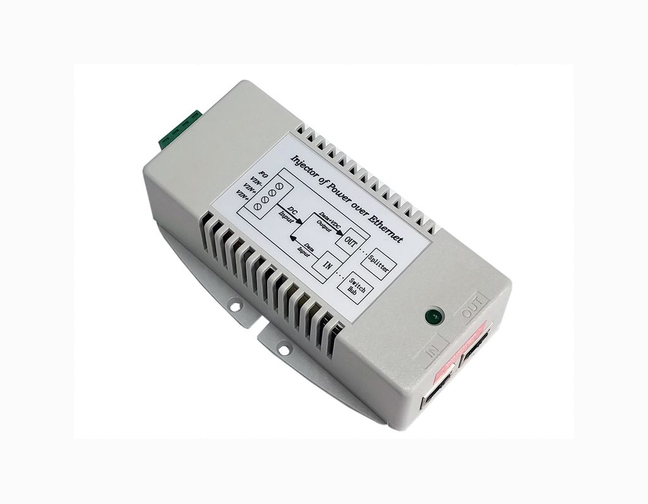

TP-DCDC-1224G-4P - Gigabit 9-36VDC IN 24VDC 4 Pair PoE OUT 24W DC to DC Converter and PoE inserter by Tycon Systems
|
|
|
- Input Voltage 9-36VDC
- 24V Gigabit Passive 4 Pair PoE Output
- Dual Inputs for Connecting 2 Power Sources
- Integrated 10/100/1000MB PoE Inserter
- High Power up to 24W
- Short Circuit, Over Current and Reverse/Over Voltage Protect
- High Temperature Operation to 70C
- Built-in Low Battery Disconnect and Surge Protection
|
|
|
TP-DCDC-1224G-4P is the Gigabit DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring 24VDC 4 pair Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. TP-DCDC-1224G-4P have an integrated 4 pair PoE injector to apply the power and data output to the CAT5 Ethernet cable. All 8 wires carry both data and PoE power. The output voltage is regulated and protected. TP-DCDC-1224G-4P have two isolated inputs for connecting 2 power sources, like a primary and backup power source. Input and outputs are isolated so + or – ground is OK. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and 4 pairt PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 1,2,4,5(V+) and 3,6,7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 24W.
DC Input Voltage |
9VDC – 36VDC, Input/Output is Isolated |
DC Input Connector |
Removeable Screw Type Compression Wire Terminal (12 AWG Max) |
DC Output Voltage |
24V (Passive) 4 pair power |
Data in & Data/POE Output Connector |
RJ45 (Shielded) |
Output Current (max) |
1A |
Output Power (max) |
24W |
Low Voltage Disconnect / Reconnect |
Disconnect at 8.9V, Reconnect at 9.02V |
Efficiency (min) |
80% |
Line Regulation |
1% |
Load Regulation |
5% |
Ripple |
1% |
Noise |
1% |
LED Operation |
RED = Input Power On, GREEN = Output Connected |
Surge Protection (IEC 61000-4) |
15kV (Air), 8kV (Contact), 20A (8/20us) Lightning |
EMC Standards |
FCC Class B EN55022 Class B |
Safety Standards |
UL1950, CSA 22.2 &TUV EN60950 |
Operating Temp |
-40 to +70°C (-40 to +158°F) |
Operating Humidity |
5% -90% |
Storage Temp |
-40 to +80°C (-40 to +176°F) |
Dimensions (LxWxH) |
125 x 75 x 38mm (4.9 x 3 x 1.5”) |
Weight |
300g (10.6oz) |
|
